Adder Cat 6 KVM Extender with Audio and RS232

X2-GOLD/P-US

$775.00$697.50
Save $77.50

Discontinued
For upgrade or replacement options: Contact Us

Access: X2 Gold - Remote access
Audio: Yes

The AdderLink X2 Range KVM Extenders uses the latest technology to deliver perfect video pictures at high resolutions over long distances. The X2-Gold-P uses CATx Cable (5,5e,6,7) which enables you to extend KVM signals at true 1600x1200 resolution up to 200m (1280x1024 at 300m).

The X2-Gold-P's video quality is achieved using high performance video compensation amplifiers with ultra fine independent sharpness and brightness adjustments. Integral De-Skew is also provided to compensate for any color skew effects that may be introduced by long CATx cables and thus achieve crystal clear video even at longer distances. All video adjustments may be made using the keyboard. This CATx KVM extender supports high fidelity bi-directional stereo audio and audio signals are transmitted digitally using 16 bit, 44.1kHz sampling to ensure a low noise level. X2 KVM extenders may be desk/shelf mounted or rack mounted in the popular X-Series rack mount system. This system enables 16 units (transmitters or receivers) to be fitted neatly into 2U of rack space to give industry-leading rack densities and provide a modular, flexible and manageable extender solution. The range of complementary X-Series modules enables systems to be constructed to precisely match your requirements.

A number of new innovations are fitted to the X2 extenders including improved spike suppression circuits. DDC circuits are also fitted that enable the computer to query the monitor so that the video card can be optimally configured. Without this circuitry, some well known high performance video cards cannot be used at high resolutions. All X2 extenders feature transparent serial ports that enable a wide range of serial devices to be connected at baud rates up to 57,600.

AdderLink X2-Gold Cat5 Extender Application Diagram
AdderLink X2-Gold Extender Diagram

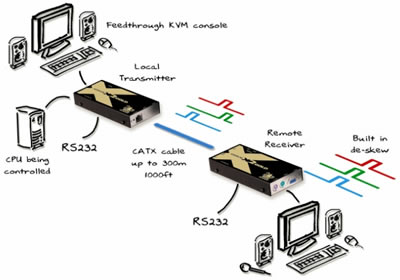

AdderLink X2-Gold CAT5 Extender Diagram
AdderLink X2-Gold CAT5 Extender Diagram

Adder X2-Gold-P Features

  • Video quality (1600x1200 at 200m)
  • Integrated state of the art 300 MHz de-skew circuit
  • Extends keyboard, mouse, video, audio and RS232 up to 300m (1000ft) using single CATx cable
  • Digital (44.1 kHz, 16 bit) audio transmission delivers high fidelity click less stereo audio for speakers and microphones
  • Advanced spike suppression circuits for reliability in 'noisy' installations
  • Flash upgradeable circuitry enables future enhancements and upgrades to be easily downloaded
  • Video sharpness, brightness and de-skew adjustments may easily be made using keyboard
  • Supports DDC signaling to ensure optimal video card setup
  • Transmitters and receivers may be desk mounted or rack in the X-Series rack (16 units per 2U)
  • Transparent serial port enables a wide range of serial devices to be connected
  • Includes a computer connection cable
  • Spike suppression - The X2-GOLD is fitted with spike suppression circuits.
  • Application - The X2-GOLD is not suitable for linking between buildings.
  • Display Data Channel - DDC signaling is supported to enable the computer to communicate with the monitor and thus configure its video card for optimal operation.

Adder X2-Gold Receiver Front & Rear View
Adder X2-Gold Receiver Front & Rear View

Adder X2-Gold-P Package Contents

Adder X2-Gold-P-US Package Includes

  • (1) X2-Gold Local (computer-end) unit
  • (1) X2-Gold Remote (KVM console-end) unit
  • (1) 6ft / 2 meter VGA, PS/2 & Audio computer interface cable
  • (1) Computer serial interface cable
  • (1) IEC style power supply and power cord
  • (1) Safety and installation leaflet
  • (1) CD manual
  • (8) Stick on rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Note: the X-Series rack panels are not included and need to be purchased separately as required

X2-Gold Resources

Adder X2-DA-Gold Manual Screenshot Adder X2-Gold Datasheet (PDF)
Adder X2-Gold Manual (PDF)

Adder X2-Gold-P Specifications

Mechanical Local Unit Remote Unit
Height 1 in. (26 mm.) 1 in. (26 mm.)
Width 6.7 in. (172 mm.) 6.7 in. (172 mm.)
Depth 2.9 in. (75 mm.) 2.9 in. (75 mm.)
Rack Space 16 units fit into 2U of rack space 16 units fit into 2U of rack space
Environmental
Temperature Tolerance 0-40°C (32 to 104°F)
Humidity Tolerance 5 to 60% non condensing
Power
Operating Voltage 100-240VAC
Power Frequency 50-60Hz
Usage 5VDC at 500mA
Video Resolution
1600 x 1200 up to 200 meters/650 feet
1280 x 1024 up to 300 meters/1000 feet
Extension Distance
CATx cable (x=5,5e,6,7) up to 300 meters / 1000 feet
Supported Hardware
Keyboard PS/2 style keyboards with 6-pin mini-DIN connectors
Mouse PS/2 style 2 button, 3 button, wheel, IntelliMouse (3 button with wheel), IntelliMouse Explorer (5 button with wheel) and other mice that support the Microsoft ® mouse signaling protocols
Monitor Flat-screen and CRT style monitors with standard HD-15 video connectors, stereo speakers and microphone
Compatibility
Computer / KVM switch Compatible with desktop, rack mount and laptop PCs with PS/2 keyboard and mouse connections
Operating System Compatible with all major operating systems including DOS, OS/2, UNIX, MS Windows 9x, NT, 2000, XP NetWare and RS6000
Connectors (Local computer-end unit)
Computer 1 x 25-way female
CATx cable 1 x RJ45
Optional power adapter 2.5mm DC jack, (only required for video only applications)
Connectors (Remote console-end unit)
Keyboard 1 x purple 6-pin mini-DIN female
Mouse 1 x green 6-pin mini-DIN female
Monitor 1 x blue 15-pin high-density D-type female
Speaker & Microphone 1 x light green 3.5mm audio jack and 1 x pink 3.5mm audio jack
CATx cable 1 x RJ45
Power adapter 2.5mm DC jack

Adder X2-GOLD/P-US is also known as X2-GOLD, X2-GOLD/P and X2-GOLD-US.

Question: Need a solution to extend the display ( VGA) , 1X Rs232 , 2X USB over Cat X cable /ethernet. Resolution will be fixed at 1280 X 768. Maximum distance 30meters. PC will have typical VGA connector.
Answer: Thank you for your inquiry. When recommending specific solutions, we like to speak with the client to ensure that we match your needs with the proper product. For additional assistance, please give us a call at 1-877-5686-6654, or send us an email to info@kvm-switches-online.com.
