The AdderLink X200A-USB/P-US is a USB keyboard, video and mouse extender kit (includes a X200A receiver unit and one CATX-USBA Computer Access Module CAM) with 44.1kHz digital stereo audio support for two computers. This USB KVM extender has been designed for use in applications where up to two computers can have their keyboard, video and mouse control extended up to 200 m (650 ft.) across CAT5 or higher UTP cable. The AdderLink X200 provides absolute real time keyboard and mouse performance along with hi-definition, hi-resolution video over a VGA interface. The AdderLink X200 receiver can also be used as a remote user station for the AdderView CATx range of KVM switches.
Adder X200A Receiver Front & Back View
VGA video, USB 2.0 (2-port hub) and audio all pass along a single CatX cable. Distance is dependent on the monitor resolution, number of monitors, cable type and the number of connection breaks for patch panels and wall plates:
The 2-port transparent link supports most common USB devices such as mice, keyboards, touch screens, graphic tablets, jog shuttles, joysticks and mass storage devices. Isochronous devices such as web cams and headsets can also be used.
Industry leading resolutions of:
1920 x 1200 to 50 m (165 ft.)
1600 x 1200 to 200 m (650 ft.)
CD audio quality (stereo channel 16 bit sampled at 44.1kHz) is available to transfer stereo audio from local to remote for speakers.

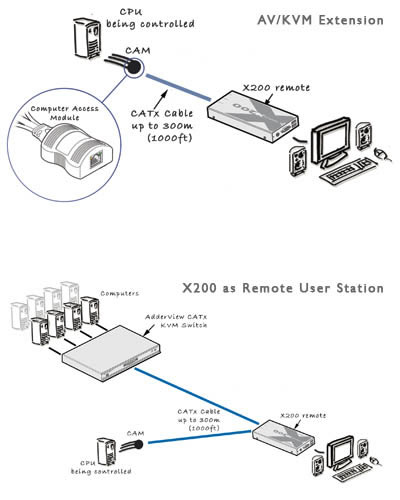

Each receiver is fitted with two ports to enable connection to a local and remote computer, or two remote computers. The user can quickly select between these ports using keyboard hotkeys or mouse control. Individual video brightness, compensation and skew settings can be applied to each connection.
Each receiver may be connected to one or two USB, PS/2 or Sun style computer access modules. Furthermore, the X200A receiver unit may be used as the remote user station for any Adder CATx KVM switch.
The AdderLink X200A applies 128 steps of signal compensation allowing for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference.
Unless an extender actively supports DDC some well known high performance video cards cannot be used at high resolutions. The AdderLink X200A fully supports DDC.
As the ADDERLink X200A supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Installation is straightforward and there is no need for any extra drivers or software to be installed.
the ADDERLink X200A units can be mounted into a chassis (X-RMK-CHASSIS) that will allow 16 X200A receivers units to be housed in 2U of rack space.
Part # | Video | Keyboard / Mouse | Audio |
VGA | USB |
| |
VGA | USB | check_circle | |
VGA | PS/2 |
| |
VGA | PS/2 | check_circle | |
VGA (SUN) | SUN | check_circle |
Adder X200A Datasheet (PDF)
Adder X200A Manual (PDF)
Brochures
ADDER Extension & Digital Signage (PDF)
| Mechanical | |
| Width | 6.8 in. (172 mm.) |
| Height | 1.0 in. (26 mm.) |
| Depth | 3.0 in. (75 mm.) |
| Weight | 1 lbs. (0.5 kg.) |
| Video Resolution | 1920 x 1200 at distances up to 50 m/165 ft. 1600 x 1200 at distances up to 200 m/650 ft. 1280 x 1024 at distances up to 200 m/650 ft. |
| Extension Distance | Up to 200 m/650 ft. using CATx cable (x=5,5e,6) |
| Devices Supported | Supports computers with USB style keyboard and mice, flat-screen and CRT style monitors with standard HDD-15 video connectors and optional audio through 3.5 mm audio jack. |
| O/S Compatability | All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc. |
| Connectors (USB CAM) | |
| Video | HDD-15 |
| Optional Audio | 3.5mm jack |
| Keyboard/Mouse | USB type A |
| CATx | RJ45 connector |
| Connectors (X200 remote unit) | |
| Video | HDD-15 |
| Optional Audio | 3.5mm jack |
| Keyboard/Mouse | USB type A |
| CATx | 2 x RJ45 connector |
| Power | 2.5 mm DC Jack |
| Power Supply | 100-240VAC 50/60Hz (X200 remote unit only) |
X200A is also known as X200A-USB/P, and X200A-USB/P-US.
