Adder AdderLink X50 USB KVM Extender will transmit USB 2.0 with USB hub designed for use in applications where computers can have their USB 2.0 peripherals including keyboards and mice, high quality video and audio control extended up to 50m (150 ft.) across CAT5 or higher UTP cable. The AdderLink X50 provides sharp, bright and ultra high-resolution video over a VGA interface and ensures total USB compatibility regardless of the computer being controlled or the peripheral being extended.
Adder X50 Receiver Front & Back View

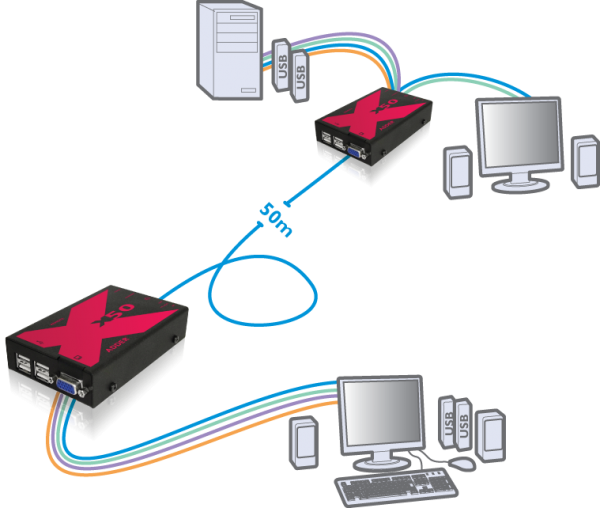

VGA video, USB 2.0 (4-port hub) and audio all pass along a single CatX cable. Distance is dependent on the monitor resolution, number of monitors, cable type and the number of connection breaks for patch panels and wall plates:
The 4-port transparent link supports most common USB devices such as mice, keyboards, touch screens, graphic tablets, jog shuttles, joysticks and mass storage devices. Isochronous devices such as web cams and headsets can also be used.
The X50 kvm extension system supports Crisp, clear and industry leading video quality at very high resolutions of 1920x1200 Full HD 1080p, 1080i and 720p with distance up to 150 feet (50 meters).
CD audio quality (stereo channel 16 bit sampled at 44.1kHz) is available to transfer stereo audio from local to remote for Line Out.
For local control of extended computers the ADDERLink X50 provides both a local video and audio output at the transmitter unit. (USB devices can be plugged directly into the computer)
The ADDERLink X50 allows for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference
Unless an extender actively supports DDC some high performance video cards cannot be used at high resolutions. The ADDERLink X50 fully supports 2-page DDC ensuring all possible resolutions are supported
To ensure full operation in all environments and avoid problems such as screen blanking in industrial environments caused for example by large electrical equipment switching, the ADDERLink X50 implements a special termination system that allows the common mode range to be extended.
As the ADDERLink X50 supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Installation is straightforward and there is no need for any extra drivers or software to be installed.
the ADDERLink X50 units can be mounted into a chassis (X-RMK-CHASSIS) that will allow 16 (X50) or 8 (X50-MS) units to be housed in 2U of rack space.
Adder X50 Datasheet (PDF)
Adder X50 Manual (PDF)
Brochures
ADDER Extension & Digital Signage (PDF)
ADDER Product Focus (PDF)
| Mechanical | Local Unit | Remote Unit |
| Height | 1 in. (26 mm.) | 1 in. (26 mm.) |
| Width | 4.7 in. (120 mm.) | 4.7 in. (120 mm.) |
| Depth | 3 in. (75 mm.) | 3 in. (75 mm.) |
| Weight | 1 lb. (430 g.) | 1 lb. (430 g.) |
| Connectors | ||
| Video input/output | HDD15 | HDD15 |
| Keyboard/Mouse/USB devices | USB type B | USB Type A hub |
| Audio input/output | 3.5mm jack | 3.5mm jack |
| CATx | RJ45 connector | RJ45 connector |
| Power | 2.5mm DC jack | 2.5mm DC jack |
| Environmental | ||
| Operating Temperature | 0°C to 40°C / 32°F to 104°F | |
| Power (remote only) | 100 - 240VAC, 10W , 50-60Hz | |
| Video Resolution | 1920 x 1200 x 60Hz at distances up to 50m / 150 ft. | |
| Extension Distance | Up to 50m / 150 ft. using CATx cable (x=5,5e,6) | |
| Devices Supported | Supports all computers with USB style keyboards and mice, HDD15 video connectors and audio through 3.5 mm audio jack. Supports all USB devices. | |
| O/S Compatibility | All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc | |
X50 is also known as X50-US and X50-USA.
