The Minicom DS 0VS50116 is an HDMI Extender for the Minicom DS Vision HDMI
solution which is an HD digital multimedia distribution and extension system.
With the DS Vision HDMI system you can distribute digital HDMI content to
multiple screens via a unique cascade feature. This is ideal for applications
such as advertising screens in supermarket aisles or near check-outs. The AV
distribution is done by cascading from one DS Vision HDMI Repeater to the next. DS Vision HDMI
is designed for everything from small domestic installations to large commercial
applications. Use it for home applications, retail centers, transportation hubs,
leisure facilities, educational facilities, corporate environments and more.
The DS Vision HDMI solution consists of the following components:

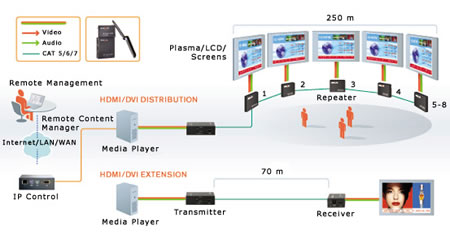

Minicom DS Vision HDMI Application Diagram
Minicom DS Vision HDMI Features:
- Unique HDMI DVI distribution solution
- Cable-efficient cascade technology
- Long range distribution of 250 meters/ 825 feet through DS Vision
repeaters
- High quality HD AV (1080p/60Hz)
- Unique single cable solution
- DDC support via emulation
- Plug-and-play installation
- Small form factor that conveniently fits behind screen
Minicom DS 0VS50116 Specifications:
| Mechanical |
Transmitter |
Receiver |
| Height |
1.0 in. (25.5 mm.) |
1.0 in. (25.5 mm.) |
| Width |
3.2 in. (81.4 mm.) |
1.9 in. (47.3 mm.) |
| Depth |
2.7 in. (67.7 mm.) |
2.7 in. (67.7 mm.) |
| Connectors |
System In - HDMI
System Out -2xRJ45: Video and DDC |
System In - 2xRJ45:
Video and DDC
Screen - HDMI |
| Indicators |
LED - (on RJ45) |
LED - (on RJ45) |
| Environmental |
|
| Operating Temperature |
5°C to 40°C / 41°F to 104°F |
| Storage Temperature |
-40°C to 70°C / -40°F to
158°F |
| Power Supply |
Switching
Power supply 100-240VAC 5V DC 1A |
| Input Signal |
|
| Video |
1.2 Volt P-P |
| DDC |
5 Volt P-P (TTL) |
| Maximum Resolution |
HDTV 1080p
1920x1080 @ 60Hz(16:09) HD |
| System Cable |
CAT5/6/7
UTP/FTP/STP cable 2x4x24 AWG Solid Wire |
| Video Amplifier Bandwidth |
165MHz |
| HDMI Connector |
Type A 19
pin, Female |
| System Connector Type |
RJ-45 |
| Maximum CAT5 Cable Length |
70m/230ft;
with cascading 250m/825ft |
| Cascade/ daisy-chain solution |
Cascade up
to 8 Repeaters to a distance of 250m/825ft |
| Audio |
HDMI
formats |
