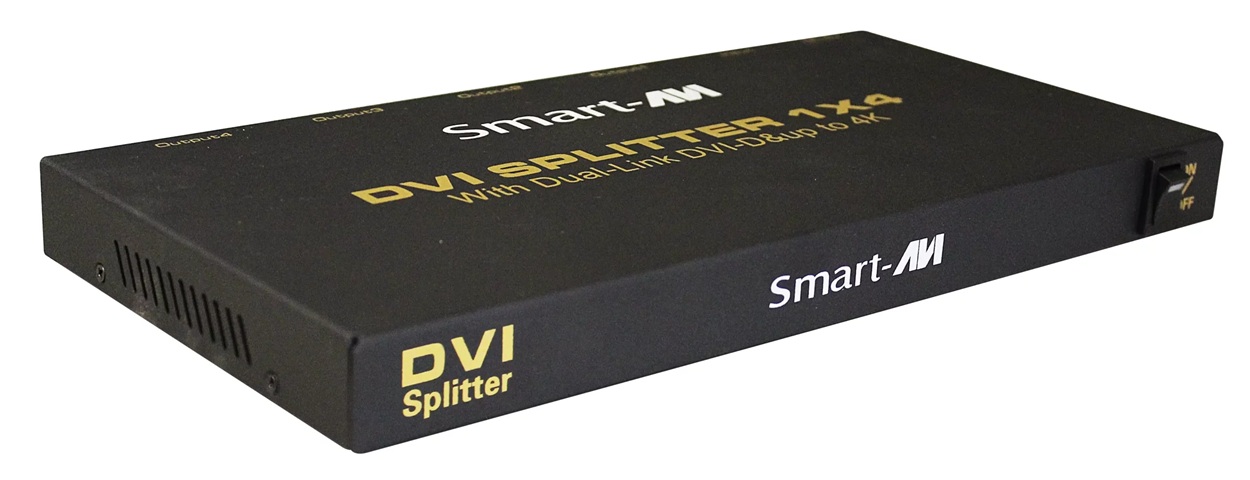

The SmartAVI DVS4P Splitter is a perfect solution to broadcast any DVI-D information
onto 4 different displays. This 4 port DVI/VGA splitter is well suited for the following
applications: Test Bench Facilities, Data Center, Presentations, Help Desks, Server
Rooms, and Industrial Floors.

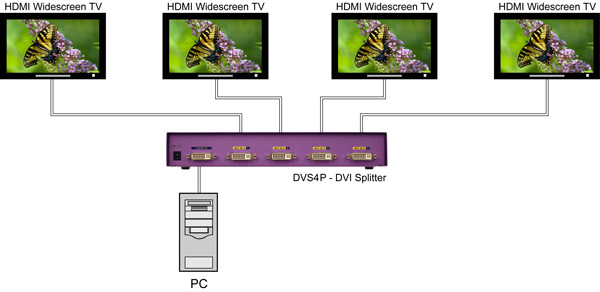

SmartAVI DVI/VGA Splitter Diagram
SmartAVI DVS4P Features:
- Control up to 4 DVI-D monitors/flat panel displays to display the same video
output source from a single PC.
- Use PanelLink digital technology.
- Supports high-resolution dislplay up to UXGA (25-165MHz).
- Can be cascaded.
- Compliant with the specification of DVI 1.0.
- Simultaneous monitor display.
- Plug-and-play, No extra software needed.
- All lower resolutions operate up to 75 Hz vertical refresh
SmartAVI DVS4P Specifications:

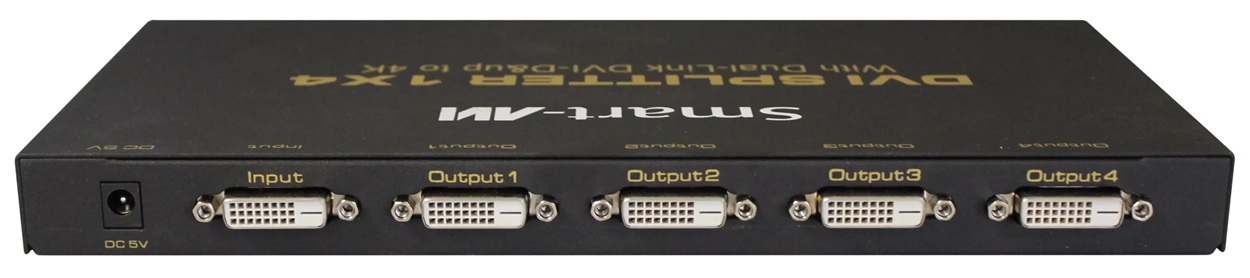

| Video |
|
| Input |
1 DVI Female |
| Output |
4 DVI Female |
| Amplifier Bandwidth |
1.65 Gbps |
| Input Video Signal |
1.2 volts p-p |
| Max. Resolution |
1920 x 1200 60 Hz |
| Power Adapter (min) |
AC 100V~240V/50~60Hz |
| Cable Distance to Monitor |
10 m (max) |
| Input DDC Signal |
5 volts p-p (TTL) |
| Single Link Range |
1920 x 1200 |
| Signal Type |
Standard DVI Signal |
| Housing |
Metal |
| Weight |
2.1 lbs. (0.9 kg.) |
