Gefen 1:2 VGA Audio over CAT5
EXT-VGAAUD-CAT5-142
The Gefen EXT-VGAAUD-CAT5-142 1:2 VGA Audio over CAT5 system extends and duplicates your audio and VGA signals at distances of up to 1000 feet. Extension is accomplished by digitally encoding and transmitting AV signals over standard CAT5 cables. The 1:2 VGA Audio over CAT5 system will extend analog VGA as well as analog Audio and provides two full sets of AV signal output on the receiving end.
How The EXT-VGAAUD-CAT5-142 Works
The 1:2 VGA Audio CAT5 Distribution Amplifier Sender unit is placed at the source location. A standard CAT5 cable is run from the 1:2 VGA Audio over CAT5 Sender up to 1000 feet to the 1:2 VGA Audio over CAT5 Receiver unit. The 1:2 VGA Audio over CAT5 Receiver unit connects to your remote video displays and audio inputs. A microphone jack provides bi-directional audio support.
 |  |
| EXT-VGAAUD-CAT5-142 Receiver Front Panel | EXT-VGAAUD-CAT5-142 Receiver Back Panel |
EXT-VGAAUD-CAT5-142 Features
- Supports up to 1920x1200 VGA video at 60 Hz
- Supports analog L+R audio
- No Loss of Quality
- Simple plug-and-play installation
- Equalizations for different CAT-5 skews
Included in the package:
- (1) 1:2 VGA and Audio over CAT5 Extender Sender
- (1) 1:2 VGA and Audio over CAT5 Extender Receiver
- (2) 5V DC Power Supplies
- (1) 6-Foot VGA Cable (M-M)
- (1) 6-Foot 3.5mm mini-phono jack audio cable
- (1) User's Manual
 |  |

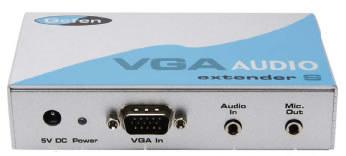

| EXT-VGAAUD-CAT5-142 Sender Front Panel | EXT-VGAAUD-CAT5-142 Sender Back Panel |
EXT-VGAAUD-CAT5-142 Specifications
| Mechanical | |
| Sender Height | 1 in. (2.5 cm.) |
| Sender Width | 9 in. (22.8 cm) |
| Sender Depth | 4 in. (10.2 cm.) |
| Receiver Height | 1.3 in. (3.3 cm.) |
| Receiver Width | 17 in. (43.2 cm.) |
| Receiver Depth | 4 in. (10.2 cm.) |
| Shipping Weight | 5 lbs. (2.3 kg) |
| Frequency Range | |
| Horizontal | 15-70 KHz |
| Vertical | 30-170 Hz |
| Power | |
| Power Supply | 5V DC |
| Power Consumption | 20 watts (max.) |
| Input Sync Signal | 5 Volts p-p (TTL) |
| Input Video Signal | 1.2 Volts p-p |
| In/Out | |
| Video | 2 x HD15 VGA Female (out), 1 x HD15 VGA Male (input) |
| Audio | 3 x 3.5mm female mini-phone jack, stereo |
| Link Connector | RJ-45 Shielded |
| Video Amplifier Bandwidth | 350 MHz |
