4-Port HDMI Multimedia KVMP Switch w/ Audio

GCS1794

$299.95$249.99
Save $49.96
FREE Shipping on orders over $100

IOGEAR's GCS1794 4-Port HD Multimedia KVMP Switch with Audio and a 2-Port USB 2.0 hub charts a ground-breaking new direction in KVM functionality by combining advanced HD and USB 2.0 technology. The HD KVM Switch enables effortless control over 4 HD devices or computers using a single USB keyboard, USB mouse and single high definition display or HDTV.

This advanced HD KVMP can increase efficiency and save equipment cost for applications where HD resolutions, large or widescreen HD monitors are used and required:

  • Desktop Publishing / Graphic Design / Video Editing
  • Digital Home Entertainment
  • High-End Gaming, where high video resolution (1080p HD) is demanded

IOGEAR’s 4-Port HD KVMP Switch supports HD digital inputs from:

  • Home / Office Computers
  • HTPC’s  (Home Theater PC's)
  • Blu-Ray Players
  • Game Consoles
  • DVR / Set-top Boxes

The HD digital output supports various high definition TV resolutions. Connect your high definition display, HDTV (flat panel, plasma, DLP, digital TV’s) and data projectors. The GCS1794 4-Port HD KVMP Switch is HDCP compliant. It is also equipped with IOGEAR’s DynaSync* which reads and remembers the monitor's parameters (EDID) eliminating any delays or change in video resolution when switching between, or booting computers.

The GCS1794 features two USB 2.0 peripheral ports for asynchronously sharing USB devices between your computers. The patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other.  A powered USB hub may be attached to the peripheral ports for added functionality.

The GCS1794 offers a simple plug-and-play out-of-box solution; including all cabling required for “Set-up and Go”!

*IOGEAR’s DynaSync provides the EDID support for Windows 7

The IOGEAR GCS1794 Features:

  • Share an HDTV or Display, keyboard, mouse with digital surround sound between 4 of your USB / HDMI computers and devices
  • Video Resolutions: 480i, 480p, 720i, 720p, 1080i and 1080p
    • Maximum video resolution: 1920 x 1200
  • 2 x USB 2.0 peripherals sharing ports
  • Dolby True HD and DTS HD Master Audio Support
  • Multi-platform OS support - Windows®, Mac, Sun Solaris™ , Linux®
  • HDCP compliant
  • IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers*
  • Power-on Detection ? If one of the computers is powered off,it will automatically switch to the next powered-on computer
  • Asynchronous hotkey switching between KVM focus, USB peripherals, and Audio ports
  • Complete keyboard and mouse emulation for error free booting and real time switching
  • Console mouse port can support emulation or bypass
  • Firmware upgradeable
  • Plug & Play - No software installation required
  • *IOGEAR'sDynaSync provides the EDID support for Windows 7

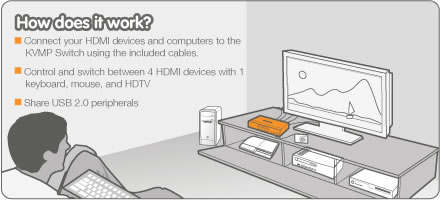

IOGEAR GCS1794 Diagram

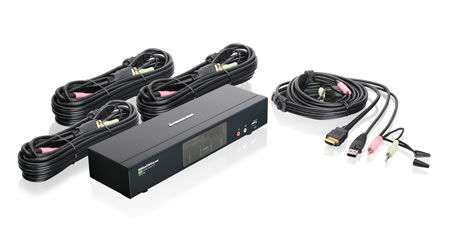

The IOGEAR GCS1794 Package Contents:

  • 1 x 4-Port HD KVMP Switch
  • 4 x HD KVM Cables
  • 1 x USB to PS/2 Converter
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card

The IOGEAR GCS1794 Specifications:

Mechanical
Height 1.625 in. (4.13 cm.)
Width 10.25 in. ( 26.04 cm.)
Depth 3 in. (7.62 cm.)
Weight 1.88 lbs (.85 kg.)
Ship Weight 5.48 lbs. (2.48 kg.)
Environmental
Operating Temperature 32-122 F (0-50 C)
Storage Temperature -4- 140 F (-20-60 C)
Port Selection Hotkeys or Front Panel Switch Button
Video Resolution 1080p; 1920x1200
Supported Hardware
CPU Connector
Monitor 4 x HDMI Type A Female
Keyboard & Mouse 4 x USB Type B Female
Audio 4 x Mini Stereo Jack Female (Green)
Microphone 4 x Mini Stereo Jack Female (Pink)
Console Connectors
Monitor 1 x HDMI Type A Female
Keyboard & Mouse 4 x USB Type B Female
Audio 4 x Mini Stereo Jack Female (Green)
Microphone 4 x Mini Stereo Jack Female (Pink)
Power
Voltage 5.3V
Standards
Approved Agency RoHS


UPC / EAN Barcode icon
UPC 881317502810
EAN 0881317502810
Question: Can you turn off the Power-on Detection feature on the switch?
Answer: Thank you for your inquiry. Unfortunately, we are unaware of a way to do this.

Question: Do you carry this item rack mounted?
Answer: Thank you for your inquiry. Unfortunately, this HDMI KVM does not have a rack mount version nor does it have a rack mount kit available.

If it meets your requirements, this switch: http://www.kvm-switches-online.com/hkm-04s.html, has a rack mount shelf bracket available as an accessory.
