| | | Home >> KVM Extenders >> USB Extender >> IOGEAR KVM Switch >> IOGEAR MiniView Micro GCS612A | IOGEAR MiniView Micro 2-Port KVM Switch w/Audio & Built-In Cables | | |
GCS612A | | Part # GCS612A | | Price: | $34.95 | | Sale Price: | $27.45 | | Savings: | $7.50 | |
|  |
|
Descriptions |
MiniView Micro Audio KVM Switch GCS612A - 2-Port MiniView Micro
Audio KVM switch w/6' built-in cables, for PS/2 computers

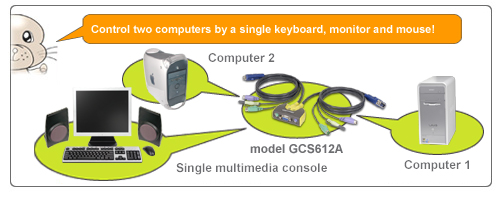

Introducing the two port MiniView™ Micro Audio KVM Switch (GCS612A) from IOGEAR – the simplest way to manage two PCs or Macs* from a single
keyboard, monitor and mouse and share the multimedia speakers among
them. This self-powered KVM switch features mouse and keyboard
emulation to ensure smooth operation, as well as support for
Plug-n-Play monitors and most wheel mice. Our patented VSE Video
Signal Enhancement® technology provides rich, 32-bit color at
resolutions up to 2048 x 1536. With KVM cables (6' long) molded into
the unit, all you need to do is to plug it into your computers, and
you’ve got a complete KVM solution from IOGEAR.
* Macintosh support requires IOGEAR’s Mac Adapter.
|
|
Function |
 |
|
|
Features/Benefits |
- The smallest 2-port KVM switch available with audio support
- Use one keyboard, monitor and mouse to control two computers
- Share multimedia speakers among two computers
- 6' long molded-in cables to simplify setup
- Support for Microsoft Intellimouse, Logitech FirstMouse+,
MouseMan+, and most PS/2 mice
- Port selection through convenient Hot Keys
- PS/2 mouse emulation for error-free boot-up
- Saves space and reduces desktop clutter
- Plug-n-Play monitor support
- Supports video resolutions up to 2048 x 1536
- No software required
- Built in AutoScan mode
- LEDs allow for easy status monitoring
- 3 Year Limited Warranty
|
 |
 |
 |
|
LED display for easy status monitoring |
Superior video quality - up to 2048 x 1536 |
Easy to install - No software required - connecting cables to
the computers is all it takes |
|
|
Requirements |
- Computers with PS/2 mouse connections, PS/2 keyboard
connections, and HDDB15 VGA connection.
- To share audio, a multimedia sound card is required.
|
|
package Contents |
- 1 2-port Miniview Audio Micro KVM GCS612A
- 1 User manual
- 1 Quick start guide
- 1 Warranty registration card
|
|
Specifications |
|
Function |
GCS612A |
|
Case |
|
Case Qty. |
12 |
|
Height |
11 |
|
Length |
17.5 |
|
Width |
13 |
|
Computer Connections |
|
Direct |
2 |
|
Console Connectors |
|
Audio |
1x Earphone Jack (speaker) |
|
Keyboard |
1 x 6 pin mini-DIN female (purple) |
|
Monitor |
1 x HDB-15 female (blue) |
|
Mouse |
1 x 6 pin mini-DIN female (green) |
|
CPU Connectors |
|
Audio |
2 x Earphone Plug (speaker) |
|
Keyboard |
2x 6 pin mini-DIN male (purple) |
|
Monitor |
2 x 6 HDB-15 male (blue) |
|
Mouse |
2x 6 pin mini-DIN male (green) |
|
Dimensions |
|
Height |
2.5 cm |
|
Length |
12.0 cm |
|
Width |
4.9 cm |
|
Housing |
|
Case |
Plastic |
|
Humidity |
0-80% RH Non-condensing |
|
LEDs |
|
Selected |
4 |
|
Operating Temperature |
0-50° C |
|
Package Dimensions |
|
Depth |
2.75 |
|
Height |
9.6 |
|
Width |
6 |
|
Port Selection |
Hot Keys |
|
Scan Interval |
5 Seconds |
|
Storage Temperature |
-20 - 60° C |
|
Video Resolution |
2048 x 1536; DDC2B |
|
Weight |
|
Case Wt. |
16.5 Lb |
|
Package Wt. |
1.15 Lb |
|
Unit Wt. |
0.9 Lb |
|
|
|
|
