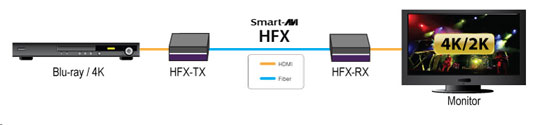

The SmartAVI HFX delivers uncompressed HDMI signals up to 1,000 feet (300 meters). Users can bridge large gaps that they ordinarily could not with this compact device. The HFX includes the transmitter and receiver, for complete point-to-point signal ex- tension, with no need for any other hardware or software. Supported resolutions go up to 4K Ultra HD (@30Hz), and 3D HD video is also supported. As with all HDMI connections, high-quality digital audio is also transmitted via the extender
Applications
- Corporate or Educational Presentations
- Financial (Remote Servers/User Control)
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- KVM Extension
- Medical Campuses (Remote Operation Away from Sensitive/Magnetic Equipment)
- Recording Studios
Features
- Supports HDMI 1.4a
- HDCP Compliant
- Extends HDMI signals up to 1,000 feet at 10.3Gbps with OM3 multimode fiber
optic cabling - Supports resolutions up to 4K Ultra HD (@30Hz)
- Hot Pluggable
- EMI/RFI Resistant
SmartAVI HFX-S Specifications
Mechanical | |
Height | 1.12 in. (2.84 cm) |
Width | 5 in. (12.7 cm.) |
Depth | 4.12 in. (10.46 cm.) |
Format | HDMI 1.4 and HDCP compliant |
HDTV Resolutions | 480p,720p, 1080i, 1080p/60Hz/48bit 4Kx2K/30Hz |
TV Resolution | 480i |
Wavelength | 850 nm |
Bit Error Rate Performance | 1.00 E-12 |
Input Interface | HDMI Type A 19-pin female TMDS |
Output Interface | HDMI Type A 19-pin Female TMDS, Fiver Optic |
Power | External 100-240 VAC/5VDC2A @ 10W |
![UPC / EAN Barcode icon](https://sep.turbifycdn.com/ty/cdn/kvm-switch/UPC-EAN-Barcode.png?t=1713564295&)
UPC 813280018227
EAN 0813280018227
