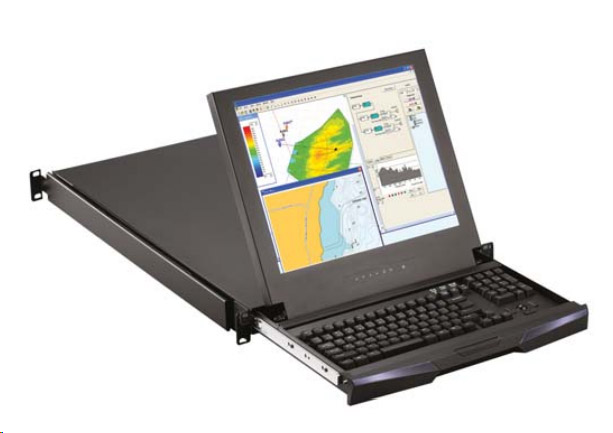

The RKP-1619 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide efficeive assistant for an administrator to control PC system.

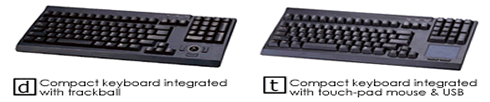

The keyboard options for the RKP-1619 are:
RKP-1619 Features:
1U 19" TFT LCD screen
Two keyboard selections "d" and "t" support multiple languages
Lock out rail to prevent movement of the keyboard
Adjustable mounting brackets from 390 to 900 mm
All mounting hardware included
12, 24, 48-Voilt DC power supply options
RKP-1619 Specifications:
Mechanical
Height
1.75 in. (4.44 cm.)
Width
17.4 in. (44.2 cm.)
Depth
25.6 in. (65 cm.)
Weight
39 lbs. (18 kg.)
Package Dimensions (H x W x D)
7.1 x 23.6 x 33 in. (18 x 60 x 84 cm.)
Package Weight
53 lbs. (24 kg.)
General
Form factor
1U rack mounting on slide-out rails, 17-key numeric keypad
Colorr
Black
Compatibility
Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Server-side Interface
HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
Rack Mounting
Adjustable ranges from 15.3" to 37.2" (390 to 945 mm)
Environmental
Operating temperature
0 to 50 Degree Celsius
Storage temperature
-25 to 65 Degree Celsius
Relative Humidity
90%, non condensing
Shock
50G peak acceleration (11ms, half since wave)
Vibration
58~500Hz/ 0.98G (11min/ cycle)
Power
110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
LCD Screen
LCD Manufacturer
Samsung
LCD Origin
South Korea
Display Size
19 inch diagonal
LCD Typee
Samsung grade A industrial TFT LCD Panel
Resolution
1,280 x 1,024 with 60 / 70 / 75Hz
Display colorr
16.7 M
Brightness
300 cd/m2
Contrast Ratio
700:1
Response Time
TR=1.7/ Tf=6.3 ms
Pixel Pitch
0.294 (H) x 0.294 (V) mm
Viewing Angle
85/ 85/ 85/ 85 (L/R/U/D)
OSD Control
Brightness, Contrast, Phase & Clock, Color, H & V Position,, Auto-tune, Recall & Language
