The NTI VEEMUX SM-4X4-DVI is a DVI video matrix switch that routes video from
up to four single link digital DVI video sources (computers, DVD players,
satellite receivers, etc.) to up to four displays (LCD monitors, Plasma
screens, DLP HDTVs, projectors, etc.).
*Note: The SM-nXm-DVI DVI Video Matrix Switch does not support HDCP.
NTI SM-4X4-DVI Features:
Configures and controls the switch through serial port, or front panel
buttons.
Supports DVI-D interface for crisp and clear video quality on flat panel
displays.
Silent fanless operation.
Provides high digital resolution up to 1920x1200 for monitors and 1080p
for HDTV displays.
EDID learning for the support of any DVI display device.
Built in default EDID configuration tables for both PC and Mac.
Each output provides one video signal.
Each input can be independently connected to any or all outputs.
NTI SM-4X4-DVI Details:
Control Methods:
Matrix Control Software
Intuitive graphical software provides fast switch control using an
RS232 connection.
Supports Microsoft Windows® 95/98/NT/ME/2000/XP/Vista.
Save and load feature allows frequently used matrix switch
configurations
to be recalled with the click of a button.
Front Panel Interface
Configuration and control can be done using the front panel buttons.
Locally change input and output selections with front panel buttons.
RS232 Control
Configuration and control can be done through the serial port.
Female 9-pin D connector.
Baud rate: 9600.

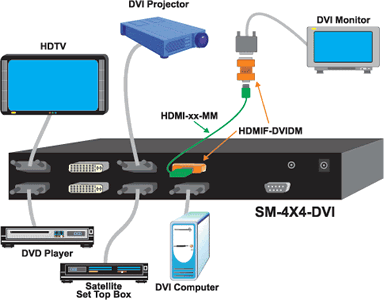

NTI SM-4X4-DVI Application Diagram
NTI SM-4X4-DVI Specifications:
Mechanicall
Width
12 in. (4.7 cm.)
Height
1.75 in. (0.7 cm.)
Depth
6.5 in.
(2.6 cm.)
Weight
4.1 lbs. (1.9 kg.)
Video Input
Compatibility
Compatible with computers and HDTV video
sources (satellite receivers, DVD players, etc) with DVI-D outputs.
Multiplatform support
Windows 2000/XP/Vista/Server
2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
Four female DVI-I single link connectors.
Video Output
Connectors
Four female DVI-I
single link connectors.
Resolution
Supports 480i, 480p,
720i, 720p, 1080i and 1080p resolution for HDTV displays.
Supports up to 1920x1200 resolution for monitors.
