NTI 4 Port VGA USB KVM Splitter

The NTI VOPEX USB KVM splitter (VOPEX-USBV-4) with built-in USB hub allows four users (four USB keyboards, USB mice and VGA monitors) to access one USB enabled computer and up to three USB devices (printers, scanners, security cameras, etc.).

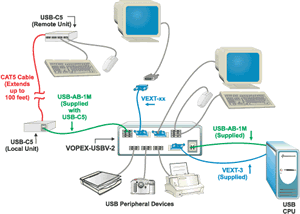

Pictured is the NTI VOPEX-USBV-2 Diagram
(VOPEX-USBV-4 has four user stations)

• Compatible with USB PC, SUN and MAC computers.
• Built-in hub for multiple USB devices.
• Access one computer from multiple locations.
• Multiple users can enter data into the same program.
• Both low speed and full speed USB devices are supported.
• Supports Plug-n-Play specifications.
• Supports international keyboard layouts in auto-detection mode.
• High quality, rugged steel construction with durable powder coat finish.
• Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.

NTI VOPEX-USBV-4 Specifications:

Hosts:

• Male 15-pin HD connector.
• Female USB Type B connector.
• Supports a USB computer (PC, SUN, MAC).
• Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Devices:

• Female USB Type A connectors for connection of keyboard and mouse.
• Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse¨, Logitech Cordless Elite Duo keyboard and mouse. Gyration keyboard/mouse and Crystal Vision keyboard with touchpad.
• Keyboard and mouse are hot-pluggable.
• Three female USB Type A connectors for connection of USB peripheral devices (printers, scanners, security cameras, etc.).
