Aten 2 Port DVI Audio/Video Switch
VS261
ATEN VS261 2-Port DVI Video Switch w/Audio
The ATEN VS261 2 port DVI switch chart a revolutionary new direction in multimedia functionality by combining a Digital Visual Interface (DVI) Video Switch with quality stereo audio. You no longer need to have separate setups for display and audio. You can switch among two media sources, and enjoy their output on a single DVI display and set of multimedia speakers.
ATEN VS261 2-Port DVI Video Switch w/Audio Features and Benefits:
- DVI video switch with stereo audio support
- Output sound and video signals from 2 DVI or analog video sources
- Compliant with the DVI specification
- Video source selection via front panel switches or IR remote control
- LED display for easy status monitoring
- Superior video quality - 1600x1200 60Hz; DDC2B
- Easy installation
- Supports Windows and Mac host systems

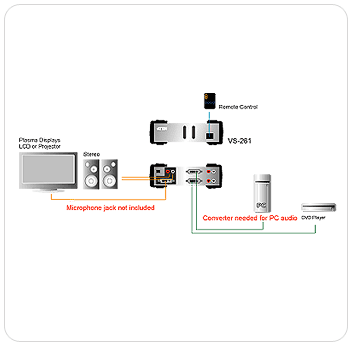

ATEN VS261 2-Port DVI Video Switch w/Audio Function Diagram
ATEN VS261 2-Port DVI Video Switch w/Audio Package Content:
1 x DVI Video Switch
1 x IR Remote Control Handset
1 x Power Adapter
1 x User Manual
ATEN VS261 2-Port DVI Video Switch w/Audio Specifications:
| Case | |
| Width | 13.0 in. (33.0 cm) |
| Height | 8.0 in. (20.0 cm) |
| Length | 19.0 in. (48.0 cm) |
| Case Qty. | 10 |
| Package Dimensions | |
| Depth | 6.3 in. (16.0 cm) |
| Width | 9.5 in. (24.0 cm) |
| Height | 2.3 in. (5.7 cm) |
| Housing | |
| Case | Metal |
| Weight | |
| Package Wt. | 2.0 lb. (0.9 Kg) |
| Unit Wt. | 1.1 lb. (0.5 Kg) |
| Case Wt. | 29.0 lb. (13.2 Kg) |
| Dimensions | |
| Depth | 3.5 in. (8.8 cm) |
| Width | 5.5 in. (14.0 cm) |
| Height | 2.2 in. (5.6 cm) |
| Connectors (Output) | 1 x DVI-I Port Female, 2 x RCA Jacks Female |
| Humidity | 0~80% RH, Noncondensing |
| Connectors (Input) | 2 x DVI-I Port Female, 4 x RCA Jacks Female |
| Video Resolution | 1600x1200 |
| Operating Temperature | 32F~122F (0C~50C) |
| Storage Temperature | -4F~140F (-20C~60C) |
UPC 672792151590
EAN 0672792151590
