The Icron WiRanger 00-00228G is a Wireless USB 2.0 Hub which integrates Icron's patented ExtremeUSB technology and standard WiFi Radios to enable a USB 2.0
cable free hub. This USB hub system is a hardware matched pair and seamlessly
co-exists with established WiFi networks.

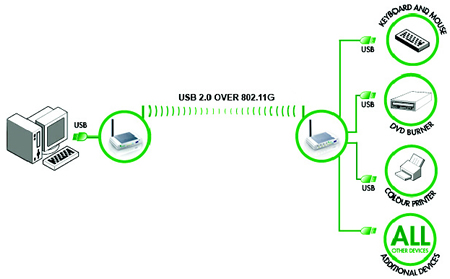

Icron WiRanger Wireless USB 2.0 Hub Application Diagram
Icron WiRanger Wireless Hub Features:
- Supports USB 1.1 (low-speed, full-speed) and USB 2.0 (high-speed) devices
- True plug-and-play, no drivers required
- Supports all major operating systems including Windows, Mac-OS, Sun and
Linux
- 4 Port USB 2.0 hub on remote unit. Additional hub connections supported
for more devices
- Ideal for all I/O devices, printers, scanners, web cams, hard drives and
MP3 players
- Ships ready to operate, paired at the factory. Pairing can be updated
or changed via IrDA link
- System powered at both LEX (local extender) and REX (remote extender) units
Icron 00-00228G Package Includes:
- Local Extender (LEX) module
- Remote Extender (REX) module
- (2) power adapters
- User guide
Icron WiRanger Wireless Hub Specifications:
| Mechanical |
LEX |
REX |
| Height |
1 in. (28 mm.) |
1 in. (28 mm.) |
| Width |
4 in. (110 mm) |
4 in. (110 mm) |
| Depth |
3 in. (69 mm.) |
3 in. (69 mm.) |
| Connector |
|
| LEX (upstream) |
1 x USB Type B |
| REX (downstream) |
4 x USB Type A |
| Hub |
|
| Above LEX |
Yes |
| Below REX |
Yes |
| Radio Max Data Rate* |
54 Mbps (802.11g) |
| Range* (Avg. distance at throughput) |
30m @ 54Mbps
TBD @ 1Mbps |
| USB 1.1 and 2.0 Compatible |
Yes |
| Device Speeds Supported |
High speed,
full speed & low speed |
| Peak USB Transfer Rate |
TBD |
| Maximum Devices Connected |
14 including
hubs |
| Pairing Model |
Matched set |
| Security |
Standard WEP
security enabled by Radio |
| * Actual performance will vary
depending on operating environment |
|
|
|
