The Minicom Smart IP Access is all you need to add KVM control via IP to your
servers. The 0SU51068 provides remote KVM access via LAN, WAN, or Internet connections
to either a single server or to mixed server environments via an existing KVM switch.
The Minicom 0SU51068 Smart IP Access provides built in remote control over two Serial
devices. For example, Serial control of power management allows you to reboot remotely
and to power servers on and off from any location.
Compatible with all Minicom KVM switches, Smart IP Access also provides hundreds
of predefined legacy KVM switch definitions, allowing easy configuration for remote
KVM access to most servers.
Smart IP Access offers a variety of encryption protocols to prevent security breaches,
including AES (up to 256-bit) and 3DES. In addition, the dual IP connection can
be deployed to take advantage of an existing network means of redundancy or security.
0SU51068 Features and Benefits:
- Remote KVM Access: BIOS level access of computers and servers from any location
- IP to KVM Interface: Add remote access functionality to installed KVM systems
- High Security: Data Encryption based on 128-bit SSL. Create unique SSL certificate.
- Two LAN Ports: Redundancy LAN for backup support
- Two Serial Ports: Control a power switch and a headless server while both
devices are connected.
- Plug and Play: Installation requires no change to the installed base
- Support Multiple OS: Work with Windows, DOS, UNIX, SGI, Linux
- Brower Based: Control and manager your servers from anywhere in the world.
- High ROI: As a tech service provider - save direct costs on travel and logistic
expenses. Save on your investment. Preserve existing installation.
- Rack Mountable: Rack Mounting brackets included
- Pre-Defined Settings: Seamless control of most KVM switches available. Just
select and connect.
- KVM.net Compatible: Control all hardware and user administration through
a single centralized system.

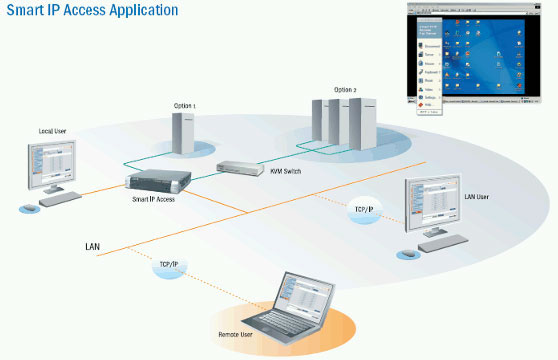

Minicom Smart IP Access Application Diagram
Minicom 0SU51068 Technical Specifications:
| Mechanical |
|
| Height |
1.7 in. (44
mm.) |
| Width |
8.5 in. (215
mm.) |
| Depth |
9 in. (230
mm.) |
| Environmental |
|
| Operating Temperature |
0°C to 40°C / 32°F to 104°F |
| Power |
|
| Supply |
Internal Switching
85 - 265 VAC 50 / 60 Hz |
| Connections |
|
| Ethernet |
2 x RJ45 - 10/100 Mbit/sec autosensing |
| Serial |
2 x RJ45 |
| Local KVM connection |
Screen HDD15, Keyboard/Mouse
- MiniDIN6 |
| Computer / switch connection |
Screen HDD15, MiniDIN6 3 in 1
Cable 1.8 m (supplied with system) |
| Video and Mouse Synchronization |
Both auto and
manual modes |
| System |
Host Computer |
Client Computer |
| Operating systems |
Windows 2000, XP, NT4,
2003 Server, DOS, Novell 3.12 -6, Linux
|
Windows 2000 computer with
IE 6.0 or higher
|
| Resolution |
Up to 1600x1200 @85Hz
|
Recommended resolution
should be higher than resolution on host computer
|
|
|
|
