The Minicom 0SU60002 is a Matrix DX 4 User,32 CPU, KVM Switch for the DX matrix
system. The Minicom DX system gives you a highly secure, integrated, flexible
and supremely scalable solution for 24x7 BIOS-level control and management of high-density
mission critical server environments. It enables up to eight IT managers to
simultaneously access hundreds of servers and network devices from any location.
The DX system provides five functions in one unified solution: KVM switching and
control, Serial control, power management, user management and remote access. These
functions are unified by Minicom's Advanced Integrated Management interface (AIM).
AIM is a hardware embedded, Windows-like interface providing out-of-band BIOS level
access, topology-independent viewing, and point-and-click management for all KVM
and Serial hardware in the server environment.
The Minicom DX allows you to seamlessly cascade additional switch layers, allowing
you to add hundreds of servers, all controlled from the same AIM interface. AIM
ensures that users experience a transparent, topology-independent view of their
servers and devices, without the complication of viewing the additional hardware
or physical connections.
The DX features user-name and password authentication including up to 32 user profiles
and 4 levels of user access rights for increased protection. Additional security
is provided by the ability to relate user names to their designated servers regardless
of changes to their port configuration.

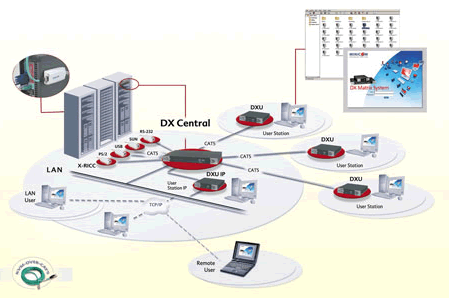

Minicom DX Matrix System Application Diagram
Minicom DX432 Specification:
| Mechanical |
|
| Height |
1.6 in. (4 cm.) |
| Width |
11 in. (27 cm.) |
| Depth |
17 in. (43 cm.) |
| Rack Mountable |
Yes |
| Power |
|
| Consumption |
100 - 250 VAC 50/60 Hz |
| Cables/Connectors |
|
| Computer Ports |
32 x RJ45 |
| User Ports |
4 x RJ45 |
| Serial Ports |
2 x DB9 |
| LAN |
RJ45 |
