The replacment for this product is the Avocent AV1415-001.
The AutoView 1400 KVM switching system includes multi-platform
support, advanced cable management options and a convenient on-screen display.
Avocent AutoView 1400 (AV1400-001) 8-port, single user KVM switch provides PS/2, USB,
Sun and serial connectivity, advanced cabling options, flexible access and a
next-generation user interface in one switching solution.
The Avocent AutoView 1400 (AV1400-001) switch server interface modules and integrated access cables
automatically assign and retain unique server names, which simplifies
installation and eases re-configuration. With flexible cable options and
advanced on-screen management, the Avocent AutoView 1400 (AV1400-001) switching system is an ideal
solution for today’s small office and mid-sized business networking
environments.

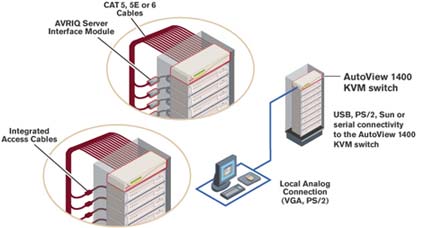

Avocent AutoView 1400 Diagram
Avocent AutoView 1400 (AV1400-001) Features and Benefits:
- Integrated access cables offer PS/2 or USB keyboard, video and mouse
connectivity in one, slim CAT 5 cable, which reduces cable bulk, saves time
and reduces cost.
- Server interface modules support all major server platforms and VT100
serial-based devices.
- Provides access to eight PCs and network devices.
- Advanced on-screen management provides easy configuration and server
selection.
- BIOS-level access ensures connection to the attached servers regardless
of the health or type of operating system.
- A space-saving 1U rack mount design.
- Flash-upgrades firmware for fast and easy updates for appliances and
server interface modules.
- Keep Alive power safeguard allows attached servers to continue network
functions in the event of power failure to the AutoView switch.
Avocent AutoView 1400 (AV1400-001) Specifications:
| Mechanical |
|
| Height |
1.75 in. (4.45 cm) |
| Width |
17.00 in. (43.18 cm) |
| Depth |
11.00
in. (27.94 cm) |
| Weight |
8 lbs. (3.6 kg) |
| Environmental |
|
| Operating Temperature |
50 to 122F (10
to 50C) |
| Storage Temperature |
-4F to 140F (-20
to 60C) |
| Power |
|
| Operating Voltage |
100 - 240 VAC
Autosensing |
| Power Frequency |
 50
- 60 Hz |
| Input |
40
W Maximum |
| Supported Hardware |
|
| Computers |
IBM PC/AT, PC and 100% compatibles |
| Monitor |
XGA, XGA-II with adapter, 1600 x 1200 @ 85 Hz resolution |
| Peripherals |
PC keyboard, PC mouse, Microsoft Explorer mouse, Microsoft IntelliMouse
family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman
Marble Wheel, Logitech Marble FX and Kensington 4-button mouse |
| Standards |
|
| Approved Agency
|
UL FCC Class A, cUL, ICES Class A, CE, N, GS, IRAM,
VCCI, Class A, MC Class A, C-Tick |
|
