The Adder AVG4 AdderView GEM 4-port KVM switch is the ultimate in desktop KVM
convenience and allows up to four computers to be controlled from a single keyboard,
monitor and mouse. All connections are made at the rear and with Adder's own VKVM
cables. Adder GEM switch is extremely compact and takes up very little space
on your busy desktop or in a crowded server room. The AVG4 is designed for
ease of use and maximum compatibility with new and existing computer systems.
This 4 port KVM switch features SmartBoot, which intelligently allows all connected
portable or desktop computers to boot as if they had their own dedicated keyboards
and mice attached. It also supports PC/AT and PS/2 systems and provides high video
bandwidth with low distortion at screen resolutions up to 1900 x 1440. This makes
the AV62 the ideal choice for use with larger monitors in CAD or DTP environments.
The latest monitors equipped with DDC interfaces are also supported and this facilitates
true ""Plug-and-Play"" compatibility.

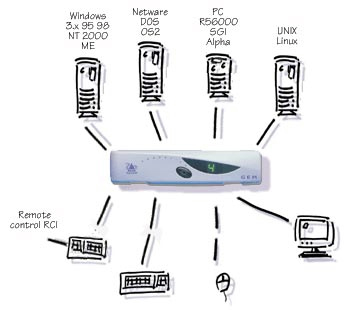

Adder GEM AVG4 KVM Switch Diagram
Adder AVG4 Features:
Reliable interface powered operation
SmartBoot allows simultaneous bootup of all computers
Standard color coded connectors used to PC99 specification
Channel selection via hot-key, mouse, front panel key or RS232
Password protection prevents unauthorised access
Cascadeable to support more than 4 PCs
Supports Windows 3.X, 95, 98, NT4, 2000, DOS, UNIX, OS/2 and other common
operating systems
Hardware compatible with desktop and laptop PCs, RS6000, SGI and DEC Alphas
Flash upgradeable for future enhancements
Keyboard hot-key, mouse switching, front panel operation, RS232 and optional
RC1 remote control switching
High video quality supporting DDC monitors and screen resolutions of up
to 1900 x 1440 Remote control RC1 Windows 3.X 95 98 NT 2000 ME Netware DOS OS2
PC RS6000 SGI Alpha UNIX Linux
The AVG4 has the following connectors:
4 x 15 way HD D Female for CPU video (DDC/Blue)
4 x 6 way mini DIN Female for CPU keyboard (Violet)
4 x 6 way mini DIN Female for CPU mouse (Green)
1 x 6 way mini DIN Female for shared keyboard (Violet)
1 x 6 way mini DIN Female for shared mouse (Green)
1 x 15 way HD D Female for shared monitor (DDC/Blue)
1 x 15 way standard D Female for FLASH upgrade andRC1 remote, RS232 control
and synchronisation
1 x 5V dc power inlet for optional 500mA external PSU
