USB Dual Display VGA KVM Extender with RS-232
CE774

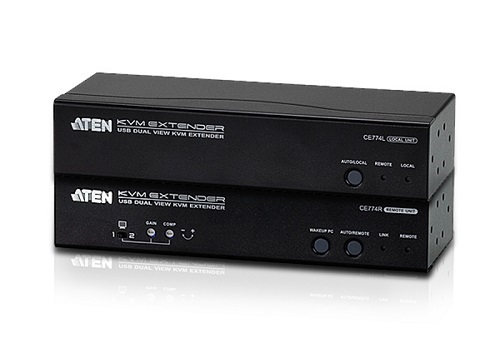

ATEN CE774 Dual View KVM Extenders allows access to a computer system from a remote Dual View console up to 500 feet (150 m) away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, efficient and flexible. Use the improved built-in front panel tuners to easily adjust the picture quality.
Aten CE774 Features & Benefits
- Dual View Support - connect two screens to transmit two video output signals to a remote site up to 500 feet (150 m) awayusing inexpensive Cat 5e/6 cables
- Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
- Superior video quality - 1920x1200@60Hz(100 ft., 30 m), 1600x1200@60Hz(500ft, 150 m)
- Gain/Compensation Control - adjusts signal strength in order to compensate for distance
- RS-232 Channel - allow you to connect to a serial terminal,or serial devices such as touchscreens and barcode scanners
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Sun/Mac keyboard support and emulation *
- Supports Wide Screen formats ** * 1. PC keyboard combinations emulate Sun/Mac keyboards2. Sun/Mac keyboards only work with their own computers
Aten CE774 Package Contents
- (1) CE774L USB KVM Extender - Local Unit
- (1) CE774R USB KVM Extender - Remote Unit
- (1) KVM Cable - VGA, USB, Audio; 1.8m/6ft
- (1) VGA Cable - 1.8m/6ft
- (2) Power Adapters
- (1) Mounting Kit
- (1) User Instructions
- (1) 2-Year Warranty
Aten CE774 Resources
- Aten CE774 Datasheet (PDF)
- Aten CE774 Quick Start Guide (PDF)
- Aten CE774 Manual (PDF)
- Aten CE774L CAD Drawing (PDF)
- Aten CE774R CAD Drawing (PDF)
Aten CE774 Specifications
| Function | CE774L | CE774R | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) | |
| Video | 2 x HDB-15 Female (Blue) | |||
| Mouse | 1 x USB Type A Female (White) | |||
| Speakers | 1 x Mini Stereo Jack Female (Green) | |||
| Mic. | 1 x Mini Stereo Jack Female (Pink) | |||
| Main | 1 x RJ-45 Female (Black) | |||
| Sub | 1 x RJ-45 Female (Black) | |||
| KVM Ports | Keyboard / Video / Mouse | 1 x SPHD-17 Female (Yellow) | N/A | |
| Speakers | 1 x Mini Stereo Jack (Green) | |||
| Mic. | 1 x Mini Stereo Jack (Pink) | |||
| VGA Input | 1 x HDB-15 Male (Blue) | |||
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) | ||
| Power | 1 x DC Jack (Black) | |||
| Switches | Operating Mode Selection | 1 x Pushbutton | ||
| Wakeup PC | N/A | 1 x Pushbutton | ||
| Video Output Port Selection | N/A | 1 x Slide Switch | ||
| Video Gain Tuner | N/A | 1 x Knob | ||
| Video Compensation Tuner | N/A | 1 x Knob | ||
| LEDs | Local | 1 (Green) | N/A | |
| Remote | 1 (Green) | |||
| Link | N/A | 1 (Green) | ||
| Emulation | Keyboard / Mouse | USB | ||
| Video | 1920 x 1200 @ 60Hz (100ft., 30 m); 1600 x 1200 @ 60Hz (500ft., 150 m) | |||
| Power Consumption | DC5.3V/4.38 W | DC5.3V/7.95W | ||
| Environment | Operating Temp. | 32-122°F | ||
| Storage Temp. | -4-140°F | |||
| Humidity | 0-80% RH, Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 1.52 lbs | |||
| Dimensions (L x W x H) | 7.87 x 2.98 x 41.65 inch | |||
