The Rose CRK-M1P/AUD is a CrystalView Mini, PS/2 KVM Extender Kit with Audio
& Serial. The
CRK-M1P/AUD system consists of two units. The Local Unit connects to your CPU using
a CPU adapter cable. The Remote Unit connects directly to the keyboard, video
monitor and mouse cables of a KVM station. The Local and Remote Units are
connected together with up to 150 feet of industry standard CAT5 cable.
Rose CRK-M1P/AUD Features:
- Extend keyboard, monitor, and mouse (KVM) up to 150 feet away with a single
CAT5 twisted pair cable
- Single - One KVM to 1 CPU up to 150 feet away
- Supports PS/2 keyboard and mouse and all PC video formats
- Video resolutions:
- 1600x1200 at 100'
- 1280x1024 at 150'
- Keyboard and mouse emulation allows plug and play operation
- Compatible with Rose switches such as ServeView, UltraView, and UltraMatrix
- Connector types use standard VGA (HD15) and PS/2 (Minidin6)
- Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
- Fully automatic KVM sharing on first-come first-serve basis using the dual
version models

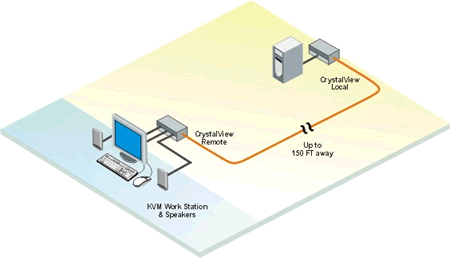

Rose CRK-M1P/AUD Extender Kit Diagram
Rose CRK-M1P/AUD Specifications:
| Mechanical |
|
| Height |
1.75 in. (4.45 cm.) |
| Width |
3.25 in. (8.25 cm.) |
| Depth |
4.5 in. (11.43 cm.) |
| Weight |
0.70 lbs. (0.31 kg.) |
| Environmental |
|
| Temperature |
32°F – 113°F (0°C – 45°C) |
| Humidity |
0% – 80% non-condensing |
| Power |
|
| Local |
From PC |
| Remote |
9V 1,000 ma external |
| Video |
|
| Resolution |
1600 x 1200 @ 100 feet
1024 x 768 @ 150 feet |
| Compatibility |
SVGA, VGA, XGA, RGB |
| Levels |
0.7V p-p |
| Sync type |
Separate/composite TTL level |
| Support |
|
| Keyboards |
PC/AT, PS/2 |
| Mouse |
PS/2 two button
Microsoft IntelliMouse
Logitech three button |
| Connectors |
|
| CPU |
DB25F |
| Video |
HD15F |
| Keyboard |
PS/2 – MiniDin-6F |
| Mouse |
PS/2 – MiniDin-6F |
| Serial |
Local – DB9F
Remote – DB9M |
| Audio |
(2) 3.5mm stereo jacks |
| Interconnect |
CAT5 UTP/STP, EIA/TIA 568 |
| Serial Data |
|
| Baud rate |
up to 19,200 |
| Data flow |
Format independent |
| Flow control |
RTS, CTS, DTR, DSR |
| Audio Data |
|
| Signal level |
5V p-p |
| Impedance |
47KΩ |
| Connectors |
3.5mm stereo jack |
| Transmission |
16 bit, 38.4KHz Digitized audio |
| Microphone |
Powered or un-powered |
| Speakers |
Powered |
| Approvals |
CE |
|
|
|
