DVI KVM over IP Extender w/ Local DVI Output (Transmitter only)

EXT-DVIKVM-LAN-LTX

$500.00$348.84
Save $151.16
Unit: Transmitter (EXT-DVIKVM-LAN-LTX)
Series: DVI
Model: KVM-Over-IP + Local Access
FREE Shipping on orders over $100

 The DVI KVM over IP extends DVI, USB, analog audio, and RS-232, over a Gigabit Local Area Network. Resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD are supported. HDMI digital audio is also supported when using HDMI sources and displays with HDMI to DVI adapters. Local monitoring of video is made possible by the DVI Local Output connector on the Sender unit. The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual crosspoint matrix of just over 65,000 Sender and Receiver units total, depending on the network bandwidth and number of ports on the network switch (see Note). Each Receiver unit has a built in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. Each Receiver unit allows the connection of four USB devices with up to 500mA current draw per port, providing access to keyboard, mouse, and other compatible devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. Two Channel analog audio can be extended from each Sender to the Receiver units for use with headphones or powered speakers. RS-232 serial control can also be extended between each Sender and the Receivers. Built in web server interface makes set up and configuration simple and intuitive. Any combination of Gefen Video over IP HDMI, DVI, and VGA Senders and Receivers can be used together to create a" Virtual Matrix", where each Sender can be accessed by multiple Receivers. The DVI KVM over IP is perfect for large scale remote workstation access and for digital signage applications.

If you are connecting multiple Sender units, use the web server interface to assign a unique ID to each one. Use the included DVI cable to connect a computer or other DVI source to the Sender's DVI input. If local monitoring of the source is required, connect a DVI cable from the DVI Local Output on the Sender to a Hi-Def display. Use the included USB and RS-232 cables to connect your computer's USB and RS-232 interfaces to the Sender unit. Connect audio Line Out or Headphone Out from your computer to the Line In of the Sender unit. Connect the DVI output of the Receiver to your Hi-Def display. Connect up to four USB devices, an RS-232 device, and a pair of headphones or amplified speakers to each Receiver unit. Connect the Sender and Receiver units to each other directly or through a Gigabit Ethernet switch, using CAT-5e cables. Each cable run can be up to 330 feet (100 meters) in length. If the Sender is connected to your LAN, you can use the two additional RJ-45 ports on the Receiver to connect computers and other IP enabled devices. Connect the included 5V power supplies to the Sender and Receiver units and to available electrical outlets. Power on all associated equipment. Use the Mode button on the Sender to optimize the picture for sharper still images or smoother video motion. When using multiple Senders, press the + and - buttons on the Receiver to toggle between the different Senders connected to the network, and then press and hold the Select button. When using multiple Receivers, press and hold the USB button to connect your workstation to the selected USB host device. When using multiple Senders and Receivers as a Virtual Matrix, you can connect to any of the Senders within the network by accessing the web interface of each Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software (available for download at www.gefen.com).
Note: A Gigabit switch is required. The Gigabit switch must support 8k jumbo frame packets in order for multicast mode to operate. If your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended.

Features:

    Extends DVI, USB, RS-232, and stereo analog audio over IP, using a Gigabit Local Area Network Any combination of HDMI, DVI, and VGA Senders and Receivers can be used together to create a "Virtual Matrix"
  • Any combination of HDMI, DVI, and VGA Senders and Receivers can be used together to create a "Virtual Matrix"
  • Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
  • Supports a local DVI monitor at Sender side
  • Supports 4 USB devices at Receiver side, with 500mA current capability per port, USB 2.0 data rates up to 480 Mbps, and backward-compatibility with USB 1.1
  • Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software (available for download at www.gefen.com)
  • Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
  • Three-port Ethernet switch built into the Receiver unit
  • + and - / Select buttons on Receiver unit allow selection of multiple Senders
  • USB button on Receiver unit allows multiple Receivers to access a USB host computer
  • Mode button on Sender for sharpness or motion optimization of image
  • Easy-to-use web server interface for quick system set-up and firmware upgrade
  • Locking power supply connectors
  • 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U
  • Surface mounting brackets included

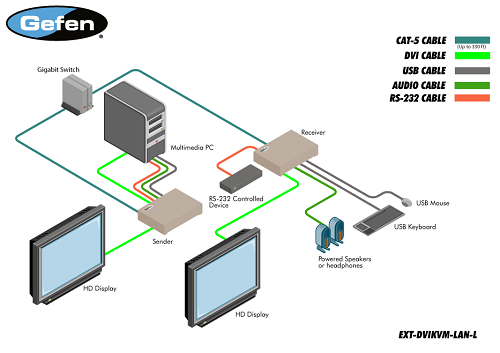

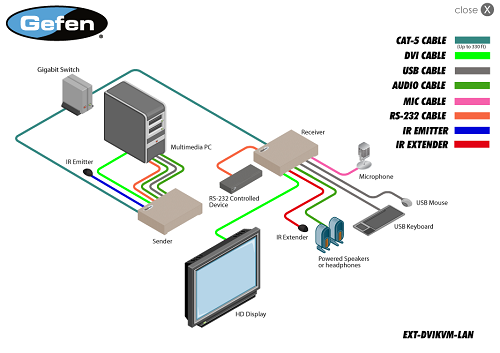

Diagram

diagram

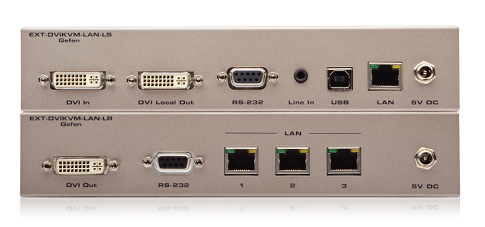

Back View

back

EXT-DVIKVM-LAN-LTX Package Contents

Gefen EXT-DVIKVM-LAN-LRX Back Package Contents

  • (1) EXT-DVIKVM-LAN-LTX Sender unit
  • (1) EXT-PS526-AIP-LP-6 5V 2.6A Power Supply
  • (1) 6ft DB9 cable M-F
  • (1) 6ft USB Cable A to B Cable
  • (1) 6ft DVI cable M-M
  • (2) L-shaped Mounting Brackets with screws
  • (1) Quick-Start Guide
  • (1) 2-Year Standard Warranty

Specifications:

    Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI 29-pin, female, digital only
  • Video Local Output Connector (Sender): (1) DVI 29-pin, female, digital only
  • Video Output Connector (Receiver): (1) DVI 29-pin, female, digital only
  • Line Input (Sender): (1) 3.5mm mini-stereo jack
  • Line Output (Receiver): (1) 3.5mm mini-stereo jack
  • USB Host Interface (Sender): (1) USB Type B, female
  • USB Device Connectors (Receiver): (4) USB Type A, female
  • RS-232 Connector (Sender): 1) DB-9, female
  • RS-232 Connector (Receiver): (1) DB-9, male
  • Ethernet connector (Sender): (1) RJ-45, female
  • Ethernet connectors (Receiver): (3) RJ-45, female
  • Mode button (Sender): (1) tact-type
  • + / USB button (Receiver): (1) tact-type
  • - / Select button (Receiver): 1) tact-type
  • Reset button (Sender/Receiver): (1) tact-type, recessed
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Power Supply:
     Sender: 5V DC 2.6A, locking
     Receiver: 5V DC 4A, locking
  • Power Consumption:
      Sender: 10W maximum
      Receiver: 20W maximum
  • Dimensions (Sender/Receiver) (W x H x D): 8.4" x 1.7" x 4.5" (213mm x 43mm x 113mm)
  • Shipping Weight:
      EXT-DVIKVM-LAN-L: 8.0 lbs. (3.6 kg)
      EXT-DVIKVM-LAN-LTX: 5.7 lbs. (2.6 kg)
      EXT-DVIKVM-LAN-LRX: 4.6 lbs. (2.0 kg)
