Belkin 4-port Advanced Secure DVI-I KVM Switch

F1DN104B

$699.99

Discontinued
For upgrade or replacement options: Contact Us

The Belkin F1DN104B Advanced Secure DVI-I KVM Switch offers superior security and data protection by providing true data path isolation between systems and networks. The F1DN104B is fully compatible with legacy and new government systems and exceeds NIAP security requirements. Using uni-directional data paths with optical diodes, it prevents peripherals from being used to leak information from one computer system to another. Additional security is provided through the Belkin F1DN104B KVM's end-to-end tamper-proof system that prevents physical tampering, and its intuitive user interface reduces user-switching errors by providing clear identification. Expect the best compatibility out-of-the-gate with the F1DN104B Advanced Secure KVM solution that's designed and vigorously tested to work seamlessly with common systems and peripherals used by the defense and intelligence community.

Belkin F1DN104B Features:

  • Dedicated processors with emulators for every port: Isolated port paths for video, audio, peripherals, and smart card readers prevent data leaks between computers
  • Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
  • Display security: Protected display interface prevents data leakage via the monitor
  • Peripheral management: USB device detection prevents unauthorized peripheral usage
  • Anti-tampering: Internal electrical sensors render unit inoperable if opened
  • Multi-platform support: Supports cross-platform systems, including DVI-D, DVI-I, and VGA video interface technologies with Belkin Smart Cables
  • Uni-body chassis: Minimizes entry points and prevents physical tampering
  • Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
  • Customizable port coloring and naming: Facilitates port identification and reduces user switching errors
  • Fast switching: No keyboard or mouse delays when switching ports
  • Intelligent common access card (CAC) switching: Prevents unwanted system log-off while switching ports (available on certain models)
  • Easy mounting: Uses an integrated mounting track to allow under-desk or side-wall mounting, creating extra desk space
  • High retention connectors: Semi-locking USB ports prevent accidental disconnection
  • Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport
  • Multi-monitor support: Connects two monitors for each system (for certain models) to increase user productivity

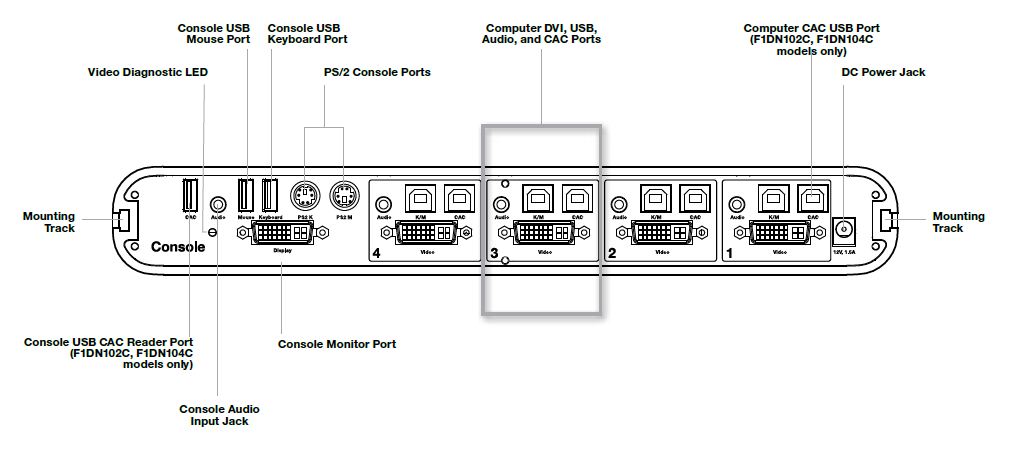

Belkin F1DN104B Backend
Belkin 4-port Advanced Secure KVM Switch Back View
(F1DN104C depicted here)

Belkin F1DN104B Requirements:

  • Console
    • DVI-D Single-Link or Dual-Link compatible monitor
    • USB or PS/2 keyboard and mouse
    • Audio cable (optional)
  • Computers
    • DVI-D Single-Link or Dual-Link compatible graphics card and port
    • VGA compatible monitor (optional)
    • USB ports
    • Audio port (optional)

Belkin F1DN104B Package Content:

  • 1 Belkin F1DN104B Secure DVI-I KVM Switch
  • 1 12V 1.5A DC Power Supply and Power Cord
  • 10 Interchangeable Port Color Chips (Multiple Colors)
  • 12 Port-Naming Labels
  • 1 User Manual

Belkin F1DN104B Specifications:

MechanicalUnit
Height 1.7  in. (4.32 cm.)
Width 12.5 in. (31.75 cm.)
Depth6.4 in. (16.26 cm.)
Weight3.85 lbs. (1.75 kg.)
Environmental
Operating Temperature32-104 F (0-40 C)
Storage Temperature

-4-140 F (-20-60 C)

Humidity

0-80% RH, Non-condensing

LEDs
On Line/Selected4
Port SelectionFront Panel Pushbuttons
Video Resolution2560 x 1600 @ 60 Hz
Power Consumption12V DC, 1.5A
Scan Interval5 seconds default (1-99 secs)
Supported Hardware
EmulationUSB keyboard/mouse
Keyboard, Mouse & Monitor2 x USB Type A
2 x 6-pin Mini-DIN (PS/2)
1 x DVI-I dual-link
Audio1 x Mini-phone 3.5mm
Computer Connectors4 x USB Type B
4 x DVI dual-link
4 x Mini-phone 3.5mm
Standards
Approved Agency FCC, EAL 2+
Warranty3 years
Question: can you connect a usb hub to the usb ports on this device?
Answer: Thank you for your inquiry. This switch doesn't provide a separate USB port to attach a USB hub. Additionally, we believe the security features of this KVM prevent attaching a USB hub for even the Keyboard and mouse connections. However, without testing it in a particular user environment, we cannot say for sure that it would not allow USB hub pass-through functionality for keyboards and mice.

That being said, the data sheet for this Belkin Secure KVM family states that it has reached NIAP Common Criteria Certification Information Assurance (EAL2 Certification, Protection Profile v2.1) certifications and lists the following under the security features of the manual:
'USB Device Detection
Storage and other unsafe USB devices are rejected when connected to the Switch. Only mouse and keyboard data are passed through.'

Also, 'note: The Cable Kit must be connected directly to a free USB port on your computer with no USB hubs or other devices in between.'

Of further note, this switch will not work with keyboards that have integrated USB hubs or other 'composite' type keyboards or mice.
