Multicast HDMI Wireless Extender System (1080p@30m)
VE849

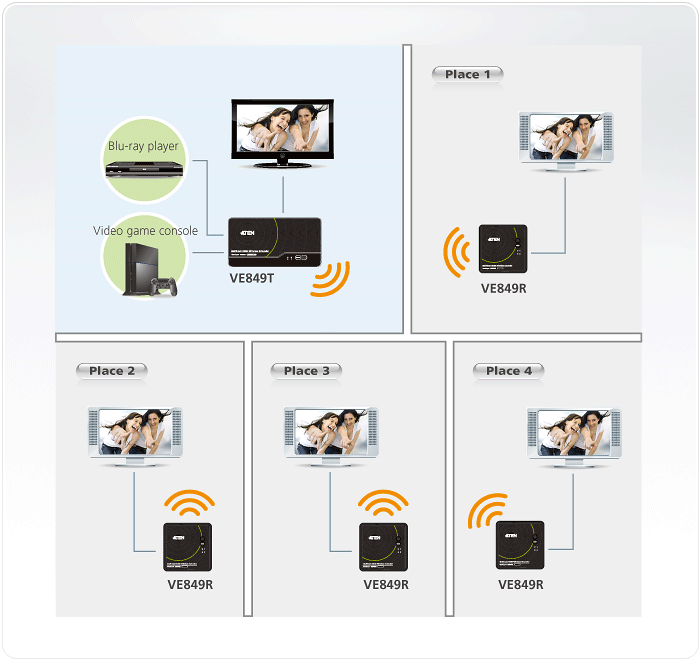

The VE849 Multicast HDMI Wireless Extender extends your HDMI display up to 30m* from the HDMI source to up to four separate receivers, wirelessly. Easily connect two HDMI source devices, a local HDTV and up to four receivers (connected to HDTVs) wirelessly with crystal clear image quality capable of streaming Full 1080p with 5.1 channel Dolby digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices remotely from the receiver side and allows you to watch one local and four wirelessly connected HDTVs simultaneously.
Product Features
- Connect 2 HDMI inputs to 5 HDMI outputs (1 local + 4 remote) via wireless extension*
- Wirelessly extend four HDMI displays up to 30m* from the HDMI source
- Connect and transmit wireless video content from your Blu-ray DVD player, media players, or other HDMI device wirelessly
- Multicast signal - 1 transmitter streams HDMI transmissions to 4 receivers simultaneously
- Supports Dynamic Frequency Selection (DFS) - greatly reduces Wi-Fi signal interference for improved transmission quality and stability
- Wireless 3D supported
- Wireless Full HD (1080p) and 5.1 channel Dolby with AC3 and DTS digital audio
- Superior video quality: 480p, 720p, 1080i, and 1080p (24 / 30 / 60fps)
- Keeps home theater electronic devices neatly out-of-sight
- Built-in IR receiver with IR blaster cable allows control of remote source devices
- WHDI Technology - Low latency <1ms
- HDCP compatible
- No software or driver installation needed
Package Includes
- 1x VE849T Multicast HDMI Wireless Transmitter
- 1x IR Remote Control with 2 AAA Batteries
- 1x IR Blaster Cable
- 1x Power Adapter
- 1x User Instructions
- 1x VE849R Multicast HDMI Wireless Receiver
- 1x Mini USB Power Adapter
- 1x IR Receiver Cable
- 1x HDMI Cable
- 1x User Instructions
* Distance may vary depending on the actual environment; solid objects such as steel, concrete, or brick may cause interference and shorten the transmission distance.
Product Specifications
| Video Input | |
| Interfaces | VE849R: N/A VE849T: 2 x HDMI Type A Female |
| Impedance | VE849R: N/A VE849T: 100 Ω |
| Max Distance | VE849R: N/A VE849T: 1.8 m |
| Video Output | |
| Interfaces | VE849R: 1 x HDMI Type A Female VE849T: 1 x HDMI Type A Female |
| Impedance | VE849R: 100Ω VE849T: 100Ω |
| Video | |
| Max Data Rate | VE849R: 6.75 Gbps (2.25 per Chan.) VE849T: 6.75 Gbps (2.25 per Chan.) |
| Max Pixel Clock | VE849R: 225 MHz VE849T: 225 MHz |
| Compliance | VE849R: HDMI (3D); HDCP Compatible VE849T: HDMI (3D); HDCP Compatible |
| Max Resolutions/Distance | VE849R: Up to 1080p@30m VE849T: Up to 1080p@30m |
| Audio | |
| Input | VE849R: N/A VE849T: 2 x HDMI Type A Female |
| Output | VE849R: 1 x HDMI Type A Female VE849T: 1 x HDMI Type A Female |
| Control | |
| IR | VE849R: 1 x 2.5mm Mini Stereo Jack Female VE849T: 1 x 2.5mm Mini Stereo Jack Female |
| Power | |
| Connectors | VE849R: 1 x DC Jack (Mini USB) VE849T: 1 x DC Jack |
| Consumption | VE849R: 5V DC, 7.5W VE849T: 5V DC, 10W |
| Environmental | |
| Operating Temperature | VE849R: 32°-104°F (0°-40°C) VE849T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE849R: -4°-140°F (-20°-60°C) VE849T: -4°-140°F (-20°-60°C) |
| Humidity | VE849R: 0-80% RH, Non-Condensing VE849T: 0-80% RH, Non-Condensing |
