Quad-head KVM extender - High definition video, USB2.0 and audio
XD614P-DP-US
Save $197.50
The ADDERLink™ XD614 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers - regardless of the location, whilst maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
- Quad-head HD 60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable
- Point-to-point protocol for ultra-low latency
- Flexibility between copper and fiber connectivity
- Adder's USB emulation ensures reliable computer bootup
AdderLink XD extender modules provide support for:
- High quality single-, dual-, triple- or quad- digital video
- Video resolutions up to 1920x1200 @ 60Hz
- USB keyboard and mouse plus two other USB devices (up to USB 2.0)
- An RS232 serial device at speeds up to 115200 baud
- Mono microphone
- Stereo speakers, digital stereo audio out
- Line-level audio in/out connections
ADDERLink XD614 Features
High-resolution video, real-time control

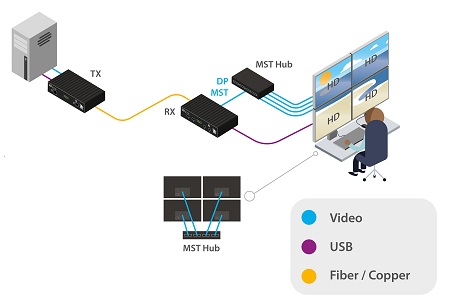

The system supports resolutions up to 1920x1200 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling. Up to four heads are transmitted within a single cable by utilizing DisplayPort 1.2 MST (Multi-Stream Transport) technology.
Single cable
HD video, USB2.0 HID (human interface device) and audio are transmitted on a single CATx or fiber cable.
Up to 4km/2.5 mile extension distances
The ADDERLink XD614 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.
Emulated USB2.0
Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and jog shuttles.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
The ADDERLink XD614 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.
Digital audio
Video: Encapsulates two channels of 24-bit, 192kHz sampled "Pulse-code modulation" (PCM) audio with each video signal. USB: Two channels of 24-bit, 96kHz sampled PCM audio. Analog: Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/speakers.
HD quality analog audio
HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone or speakers.
Serial communications
RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.

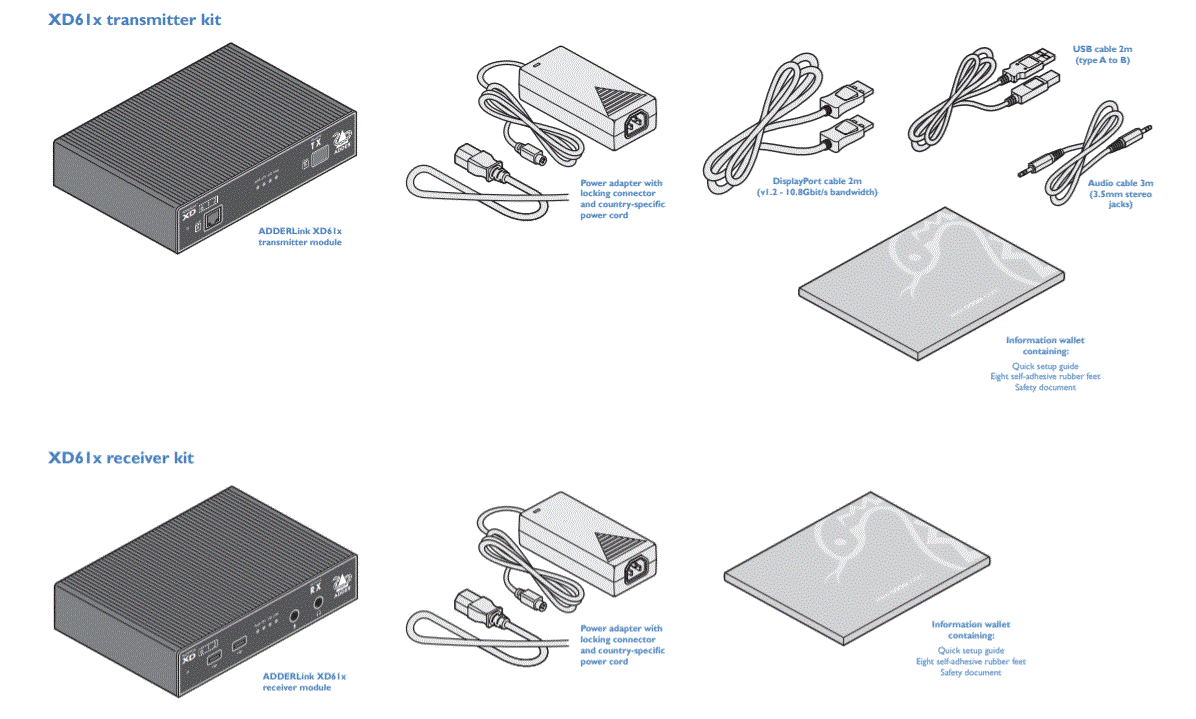

ADDERLink XD614 Package Contents
- (1) XD614 Local Transmitter (TX)
- (1) XD614 Remote Receiver (RX)
- (1) VSCD17: DisplayPort Cable
- (1) VSC24: USB Cable
- (1) VSC22: 6.6ft / 2m audio cable (3.5mm jacks)
- (2) PSU-IEC-12VDC-1.5A: Power adapter + US power cord (for TX and RX)
XD614 Resources
ADDERLink XD614 Datasheet (PDF)
ADDERLink XD614 Manual (PDF)
Brochures
ADDER Extension & Digital Signage (PDF)
ADDER Product Focus (PDF)
ADDERLink XD614 Specifications
| Mechanical | |
| Height | 1.54 in. (39mm) |
| Width | 7.32 in. (186mm) |
| Depth | 5.83 in. (148mm) |
| Weight | TX - 2.84 lb. (1.219 kg) RX- 2.73 lb. (1.24 kg) |
| Environmental | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Power | |
| Power Input | 100-240 VAC, 47/63Hz |
| Power Output | 12 VDC 18W output from power supply unit |
| Supported Hardware | |
| Video resolutions | The system supports up to 4 heads at resolutions to a maximum of 1920x1200 @ 60Hz |
| Software compatibility | All known operating systems. No drivers required |
| Extension technology | 5Gb/s CATx or 10Gb/s fiber with ultra low latency adaptive video stream compression. |

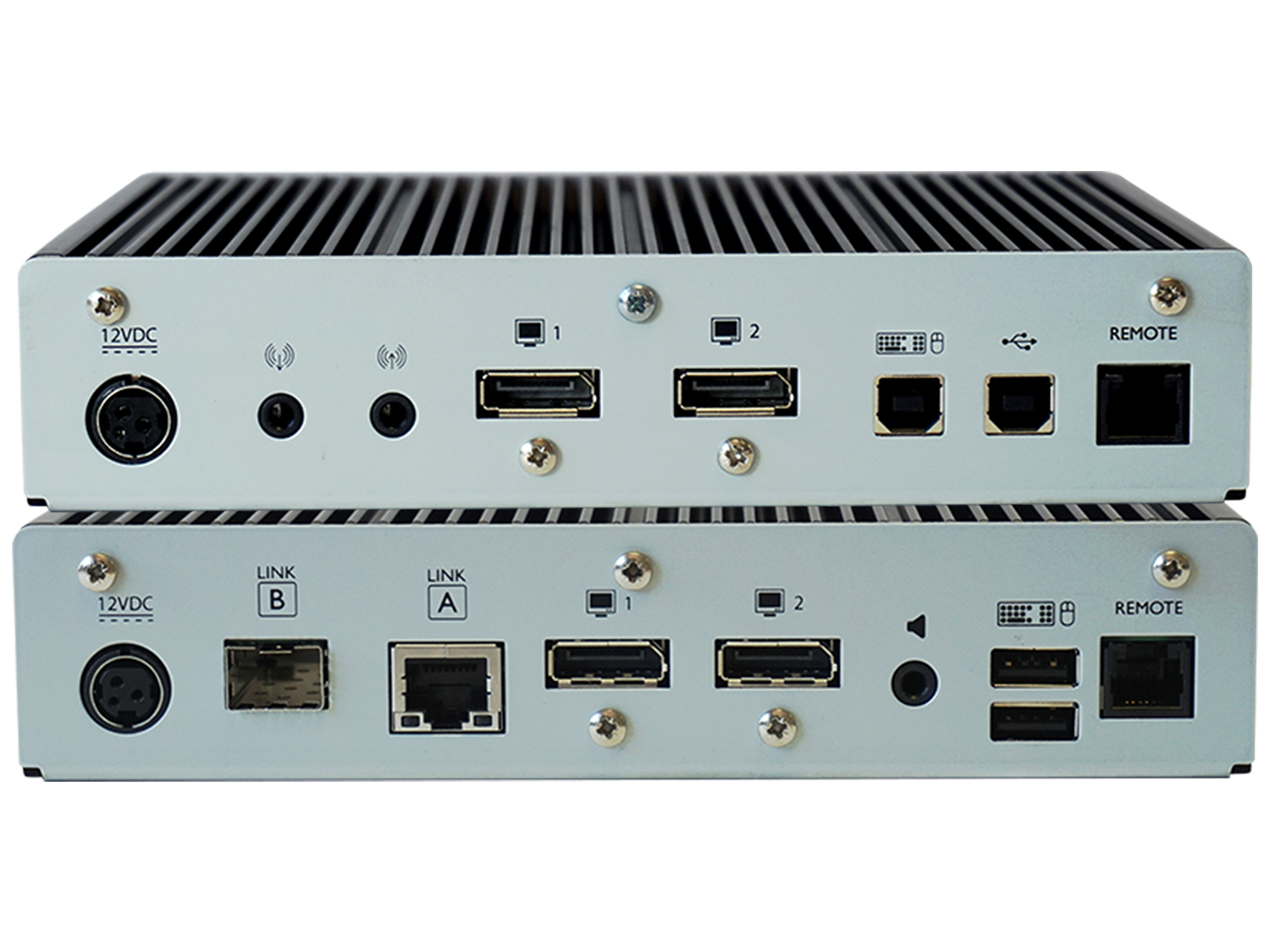

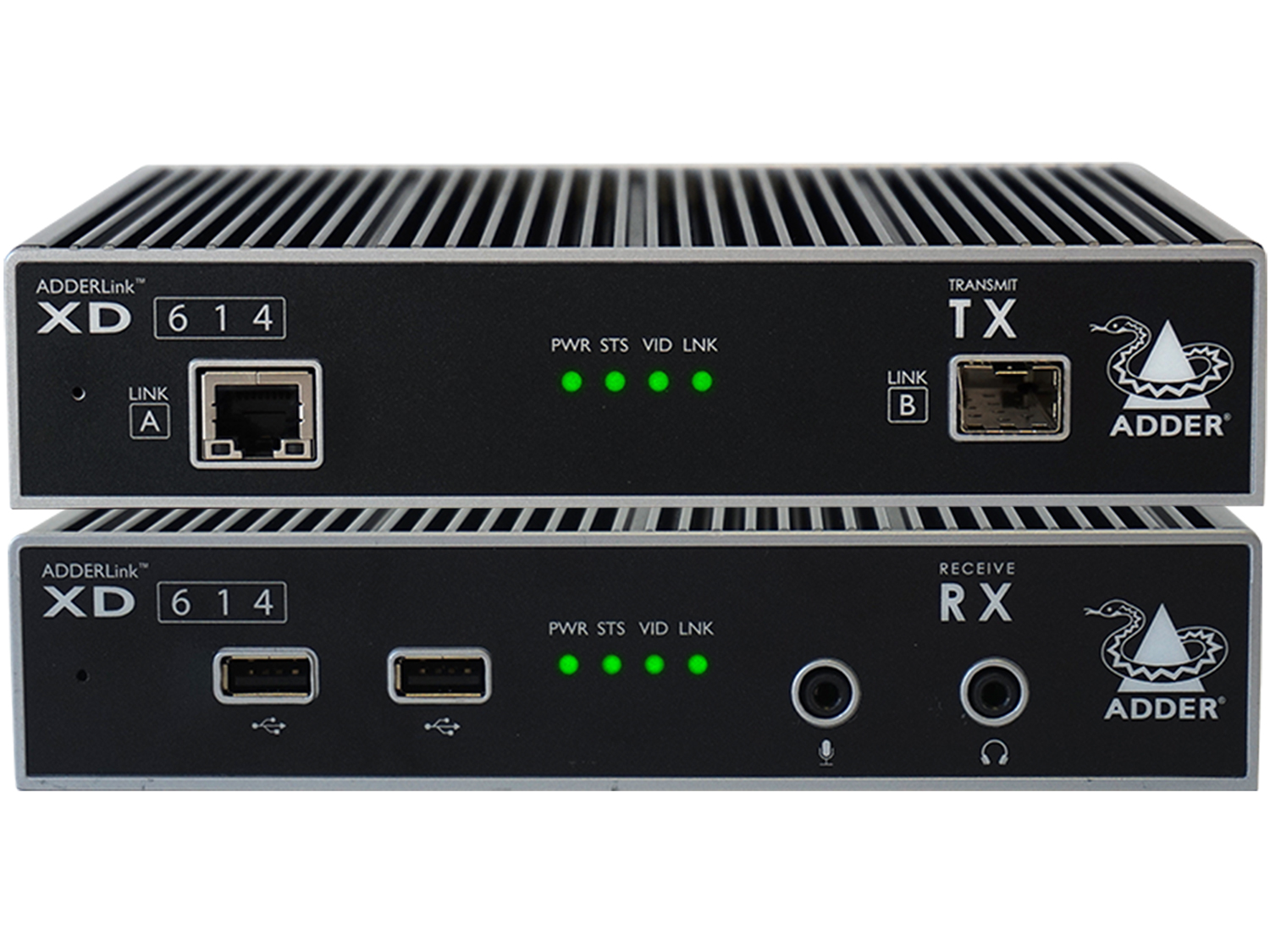

| Connections Local unit - Transmitter (TX) | 4 x Tri-color status LEDs DisplayPort™ in and local pass-through out 2 x USB2.0 Type B Line in and out analog audio RJ12 serial port RJ45 and SFP+ ports |
| Connections Remote unit - receiver (RX) | 4 x Tri-color status LEDs 2 x DisplayPort™ out 4 x USB2.0 full speed Type A Mic in, headset and speaker out RJ12 serial port RJ45 and SFP+ ports |
| Extension Distance | Fiber (SM) 2.4M (4km) Fiber (MM) 984ft (300m) CAT6 328ft (100m) CAT5e 164ft (50m) |
| Standards | |
| Approved Agency | CE, FCC |
Find the latest XD614 firmware here.
