The Minicom SmartRack 116 is a 17", Single-rail Rackmount LCD with 16
port detachable KVM switch. This Rack mountable KVM drawer with an
integrated CAT5 KVM switch gives secure, BIOS level access and control of up to
16 servers in a rack either remotely or locally.1U sized switch with innovative
ROC dongle technology.
Minicom 0SU52091 Features & Benefits:
- Space saving- When every U counts and every cable counts. Use only
one U for the KVM drawer and the KVM switch.
- Cost saving- Save on total cost of ownership of your server room by
freeing up more U space for servers or devices.
- CAT5 technology- Eliminate cable clutter at the rack. Use standard UTP
or FTP cables.
- Extended distance- Distance between computers & drawer can be up to
30m/98 feet.
- Multi-platform- Supports PS/2, SUN and USB servers.
- Flexibility- Use CAT5 cabling to customize your server room.
- Multi-layer security through OSD- Three levels of security ensure only
authorized users can control or access the system. 128-bit SSL protocol
guards and protects your corporate data to efficiently prevent hacking and
security breaches.
- Flash upgrade- Field firmware upgrade for the switches and ROC’s.
- Scalability- Upgrade from local to remote access as you grow. Add
just one ROC per new server/computer.

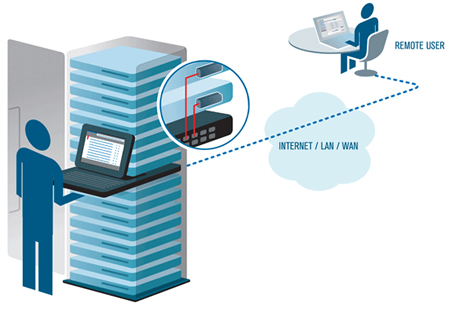

Minicom SmartRack 116 Application Diagram
The SmartRack 116 package includes:
- SmartRack 116 drawer
- SmartRack 116 switch
- User Guide
- Power cord
- RS-232 upgrade cable
Note: The ROC you require depends on your system and must be ordered
separately.
Minicom 0SU52091 Specifications:
| Mechanical |
|
| Height |
1.7 in. (44 mm.) |
| Width |
18.5 in. (470.1 mm.) |
| Depth |
17.6 in. (447.5 mm.) |
| Environmental |
|
| Operating Temperature |
0º - 40º degree C/32º -104ºF |
| Storage Temperature |
20º - 40º degree C/-4º - 104ºF |
| Humidity |
10%~90%RH |
| Power |
|
| Input |
100-240 VAC input |
| Monitor |
|
| Display Size |
17" |
| Panel Type |
Active Matrix TFT LCD |
| Resolution Capabilities |
Maximum Resolution up to 1280X1024 |
| Pixel Pitch |
Supports 0.264mm |
| Viewing Angle |
Right-Left view 60º - 70º
Up-Down view 45º - 60º |
| Contrast Ratio |
450:1 |
| Brightness |
White 250cd/m2 |
| Back Light |
Four Lamps |
| Supported Colors |
16.7M Colors |
| Compatibility |
|
| Operating Systems |
Windows, Linux, Unix
and all other major operating systems |
| Multi Platform |
Supports PS/2, SUN and
USB via ROC |
| Number of Ports |
16 |
| System Cables |
CAT5 FTP or UTP 2x4x24
AWG solid wire |
| Response Time |
Rising time 2-6ms Delay
time 14-24ms |
| Keyboard/Mouse |
106 key PS/2 keyboard
with touch pad mouse |
| Sync |
45~80KHZ |
| Computer to Switch Distance |
Up to 30m/100ft |
| Connection Types |
|
| System |
16 RJ45 |
| Serial |
RJ11 |
