AdderView Secure 2 Port USB DVI-I EAL4+ KVM Switch

AVSD1002-US

$750.00$675.00
Save $75.00
Series: Digital: Standard
Ports: 2-Ports
FREE Shipping on orders over $100
For Government Pricing
Contact Us

The AdderView Secure Digital AVSD1002 KVM Switch enables a monitor, keyboard and mouse, and audio to be shared between high and low security systems, sometimes known as red and black networks, and is designed carefully to prevent information flowing between computers or to the outside world via emissions snooping. The AdderView Secure design prevents sensitive data from leaking between ports, sensitive data leaking to the outside world and sensitive data from being stored in the device. Furthermore, the switch actively combat a range of potential leakage "threats".

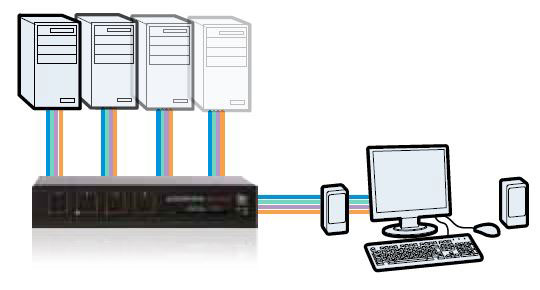

Adder AVSD1002 Application Diagram

*4 Port model shown

The AVSD1002 is designed to enable two computers in a secure environment to be controlled from a single high resolution KVM console using dual link DVI or VGA (via optional DVI-I to VGA adaper). Dual link DVI interface operates at full DVI bandwidth up to 2560 x 1600 @ 60Hz to ensure higher end applications that require high resolution or exact video quality to run smoothly. DVI interfaces have the added security advantage that randomizing the low order video bit can make snooping much harder.

Adder AVSD1002 Backview

*4 Port model shown

See Detailed Layout

Adder AVSD1002 Features

  • Adder AVSD1002 Secure KVM  checks its own operation

    AdderView Secure checks its own operation

    The hardware and software must agree before data flow is enabled. The switch constantly checks its own operation and will stop operating and flash its error light if an unanticipated event occurs.

  • Adder AVSD1002 Minimal emissions profile

    Minimal emissions profile

    The AdderView Secure is heavily shielded with double shielding in critical areas to minimise the risk of eavesdropping equipment being able to pick up signals from the equipment.

  • Adder AVSD1002 No shared RAM between ports

    No shared RAM between ports

    The keyboard and mouse processor is powered down and reset at each switchover to thwart shared RAM leakages. Separate memories hold the num, caps and scroll states and are only accessible when the relevant channel is selected. All data buffers are actively cleared once they have been used.

  • Adder AVSD1002 Restricted USB

    Restricted USB function

    The USB ports will only support keyboards and mice and other devices, such as USB storage drives, are actively prohibited.

  • Adder AVSD1002 Back

    Independent power supplies block power line signalling

    The circuitry for each port is independently powered from the USB lead. Power line signaling is therefore blocked because different port circuits don't share the same power feed.

  • Adder AVSD1002 60dB Crosstalk isolation

    60dB crosstalk isolation

    High crosstalk isolation ensures that less than 1/1000th of any signal from one computer is presented to the input of another computer due to electrical crosstalk.


  • Adder AVSD1002

    Uni-directional data paths for keyboard and mouse

    One-way data paths ensure that data isolation does not rely on trusting microprocessor software, but is instead assured by hardware and prevents a hidden software weaknesses that could potentially cause data leakage. A unidirectional structure also protects against timing analysis or forced malfunction attacks and prevents computers influencing the operation of any common circuitry.

  • Adder AVSD1002 Secure KVM Common Criteria

    One time programmable microprocessors

    Data isolation is assured by hardware and so is not compromised by any changes to the microprocessor software. Microprocessors use one time programmable memory so flash upgrades are not possible.

  • Adder AVX1016 layout

    Additional Features

    Digital or analogue video, Simple channel selection, Tamper evident case seals, Keyboard and mouse hotkey switching is banned from the design, etc.


AVSD1002 Package Contents

Adder AVSD1002 Package Contents

  1. (1) AVSD1002 Secure KVM Switch
  2. (1) 5V, 2A Power supply and US-specific power lead
  3. (1) Information CD-ROM
  4. (1) 2-Year Limited Warranty & Lifetime World Class Support

AVSD1002 Resources

Adder AVSD1002 Manual Screenshot Adder AVSD1002 Datasheet (PDF)
Adder AVSD1002 Manual (PDF)


Adder AVSD1002-US Specifications

Mechanical
Physical1U High
Width9.2 in. (234 mm.)
Height1.7 in. (44 mm.)
Depth 5.5 in. (140 mm.)
Weight3 lbs (1.4 kgs.)
Compatibility
Hardware CompatibilitySupports PC, Sun, Apple, RS/6000, Alpha and SGI-computers with USB keyboard and mouse interfaces and either VGA or DVI video interfaces.
Software CompatibilityAll known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Video ResolutionAnalog: 1920 x 1200 @60Hz
Single link digital: 1600 x 1200 @60Hz
Dual link digital: 2560 x 1600 @60Hz
Computer Connections at Switch/b>USB type B, Dual link DVI-I, 3.5mm stereo jack
Local KVM Console Connection VideoUSB type A, Dual-link DVI-D, 3.5mm stereo jack
Keyboard/MouseUSB
Power100-240VAC, 50-60Hz, 10W
Operating Temperature0 deg C to 40 deg C / 32 deg F to 104 deg F
ApprovalsCE, FCC, Designed to meet Common Criteria EAL4+

AVSD1002 is also known as the AVSD1002-US and AVSD1002-USA.
