Icron Ranger 2312 - 2-Port USB 2.0 CAT 5e/6/7 Extender with Flexible Power (330ft)
00-00406
Save $29.07
The Icron USB 2.0 Ranger 2312 (00-00406 or RG2312) extends high-speed USB 2.0 connections up to 330ft (100m) using CAT 5e/6/7 with the option to power at either the LEX (Local Extender) or REX (Remote Extender). It features full device and host support as well as Mass Storage Acceleration for improved USB 2.0 device bulk transfer speeds over previous generation extenders and the ExtremeUSB suite of features. This dual port USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device and is FCC/CE Class B certified.

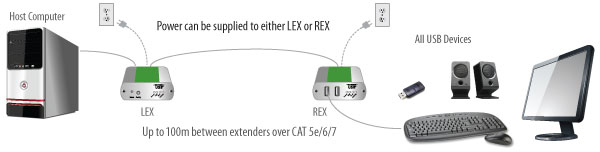

Icron USB 2.0 Ranger 2312 Application Diagram
Icron USB 2.0 Ranger 2312 Features
- USB 2.0 extender with flexible power - connect the power adapter to either the LEX or REX
- Supplies up to 1.5 Amps total when both USB ports are in use
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Supports all USB 2.0/1.1 devices up to 480 Mbps
- Includes the ExtremeUSB suite of features:
- Transparent USB extension
- Plug and play; no software drivers required
- Works with all major operating systems: Windows, macOS and Linux
- Metal enclosures with FCC/CE Class B certification for resedntial/home use
Applications
- Interactive white board
- Sensor/data acquisition
- Keyboard and mouse extension
- Industrial control
- Digital Signage
- Medical Device Connectivity
- Security: web camera, access control
Ranger 2312 (00-00406) Package Contents
- (1) Icron USB 2.0 Ranger 2312 Transmitter (LEX)
- (1) Icron USB 2.0 Ranger 2312 Receiver (REX)
- (1) 6ft / 2m USB 2.0 Type A to Type B cable
- (1) Power Adapter and US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
Ranger 2312 Resources
Icron Ranger 2312 Datasheet (PDF)
Icron Ranger 2312 Manual (PDF)
Icron Ranger 2312 Quick Start Guide (PDF)
Icron Ranger 2312 (00-00406) Specifications
| RANGE | |
| Direct Connect | Up to 100m (330 ft) over CAT 5e/6/7 |
| SPEEDS | |
| USB 2.0 | Up to 480 Mbps |
| USB 1.1 | Up to 12 Mbps |
| Mechanical | |
| LEX (Local Extender) | 3.4" x 3.0" x 1.0" (87.0mm x 75.0mm x 26.0mm) |
| REX (Remote Extender) | 3.4" x 3.0" x 1.0" (87.0mm x 75.0mm x 26.0mm) |
| Environmental | |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Local Extender | |
| LEX unit USB Connector | 1 x USB Type B Receptacle |
| LEX unit Link Connector | 1 x RJ45 |
| Mounting | Slots for cable ties or optional mounting kit available |
| Enclosure Material | Silver anodized aluminium |
| Remote Extender | |
| REX unit USB Connector | 2 x USB Type A Receptacle |
| REX unit Link Connector | 1 x RJ45 |
| Available Current at REX | up to 1 Amp to USB port; 1.5 Amps total shared |
| Mounting | Slots for cable ties or optional mounting kit available |
| Enclosure Material | Silver anodized aluminium |
| Certifications | |
| EMC | FCC (Class B), CE (Class B) |
| Environmental | RoHS2, REACH, Conflict Minerals |
| Power | Power Supply: 100-240V AC Input, 24V 1A DC Output. Apply at either LEX or REX. |
| Warranty | 2 year |
This is the replacement for the Icron USB 2.0 Ranger 2212 (P/N: 00-00252).
