Icron Ranger 2311 - 1-Port USB 2.0 CAT 5e/6/7 Extender with Flexible Power (330ft)
00-00401
Save $31.79
USB Type: USB 2.0
Extension via: CatX (up to 330 ft)
Ports: Extend 1 USB Device
Construction: Compact Small Form Factor
The Icron USB 2.0 Ranger 2311 (00-00401 or RG2311) extends high-speed USB 2.0 connections up to 330ft (100m) using CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote Extender).
The Ranger 2311 is ideal for extending USB peripherals including: keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras and any other USB device.

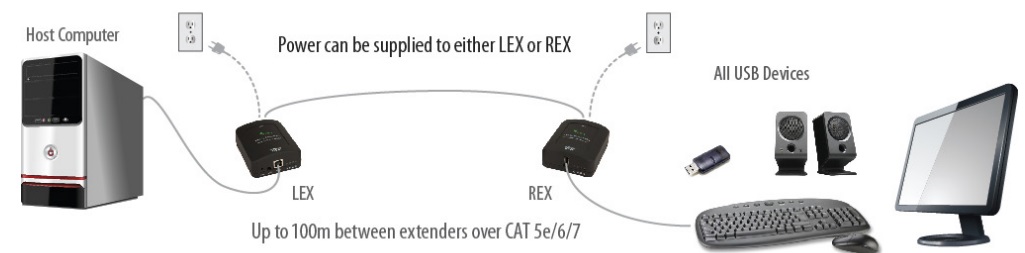

Icron USB 2.0 Ranger 2311 Application Diagram
Icron USB 2.0 Ranger 2311 Features
- Flexible power - connect the power adapter to either the LEX or REX
- Supplies up to 1 Amp to USB port
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Supports throughputs of up to 480 Mbps
Includes the ExtremeUSB® suite of features:
- Transparent USB extension
- Plug and play; no software drivers required
- Works with all major operating systems: Windows, macOS and Linux
Applications
- Interactive white board
- Sensor/data acquisition
- Keyboard and mouse extension
- Industrial control
Ranger 2311 (00-00401) Package Contents
- (1) Icron USB 2.0 Ranger 2311 Transmitter (LEX)
- (1) Icron USB 2.0 Ranger 2311 Receiver (REX)
- (1) 6ft / 2m USB 2.0 Type A to Type B cable
- (1) Power Adapter and US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
Ranger 2311 Resources
Icron Ranger 2311 Datasheet (PDF)
Icron Ranger 2311 Manual (PDF)
Icron Ranger 2311 Quick Start Guide (PDF)
Icron Ranger 2311 (00-00401) Specifications
| RANGE | |
| Direct Connect | Up to 100m (330 ft) over CAT 5e/6/7 |
| SPEEDS | |
| USB 2.0 | Up to 480 Mbps |
| USB 1.1 | Up to 12 Mbps |
| Mechanical | |
| LEX (Local Extender) | 65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2") |
| REX (Remote Extender) | 65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2") |
| Environmental | |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Local Extender | |
| LEX unit USB Connector | 1 x USB Type B Receptacle |
| LEX unit Link Connector | 1 x RJ45 |
| Mounting | Slots for Cable Ties |
| Enclosure Material | Black ABS with Rubberized Coating |
| Remote Extender | |
| REX unit USB Connector | 1 x USB Type A Receptacle |
| REX unit Link Connector | 1 x RJ45 |
| Available Current at REX | Up to 1 Amp to USB port |
| Mounting | Slots for Cable Ties |
| Enclosure Material | Black ABS with Rubberized Coating |
| Certifications | |
| EMC | FCC (Class A), CE (Class A) |
| Compliance | RoHS2 (CE) |
| Flammability | V-0 |
| Warranty | 2 year |
This is the replacement for the Icron USB 2.0 Ranger 2211 (P/N: 00-00315).
UPC 43201553
EAN 043201553
