Avocent HMX Desktop Over IP 1070 User Station
HMX1070-001
Avocent HMX Manual (PDF)
The Avocent HMX 1070 user station delivers high-quality video ( up to 1900 x 1200 @ 60Hz) and CD quality audio by providing remote access to your workstations from anywhere on the LAN. Computer users can enjoy the full desktop experience including keyboard, video, mouse, speakers, and USB mass media devices, without the inconvenience of storing the computer at their desk. The HMX 1070 offers remote access to your computer peripheral's functionality and applications from anywhere on the corporate TCP/IP LAN, or point-to-point over a single UTP cable.
Avocent HMX1070 User Station Features:
- Single Analog or Digital Video - Support Use one monitor to view high resolution content
- Ethernet - Uses existing LAN infrastructure and removes distance limitations of analog technology
- Extender mode - Point-to-point applications - either a single CAT5 cable or over a LAN
- SSL/AES 128 bit encryption - Enhanced security
The Avocent HMX Desktop Over IP Solution consists of: (all sold separately)
- HMX Manager
- HMX User Station
- HMX Computer Interface Module

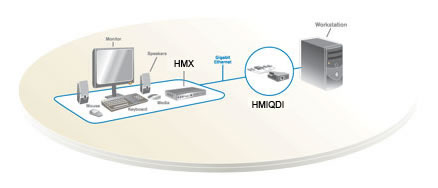

Avocent HMX Solution Back-Racking Installation

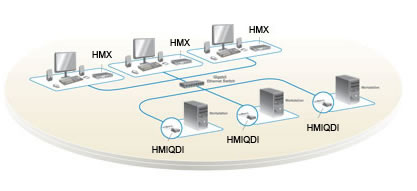

Avocent HMX Solution Point-to-Point Workstation Extension Over IP Installation
Avocent HMX1070-001 Specifications:
| Mechanical | |
| Height | 1.10 in (28 mm.) |
| Width | 8.19 in (208 mm.) |
| Depth | 6.06 in. (154 cm.) |
| Weight | 1.54 lbs. (0.7 kg.) |
| Format | Desktop mounting metal case with external power supply |
| Environmental | |
| Operating Temperature | 32° F to 104° F (0° C to 40° C) |
| Storage Temperature | -4° F to 122° F (-20° C to 50° C) |
| Power | |
| Power In | 100-250VAC @ 1.2A |
| Consumption | 1W |
| Connections | |
| USB | 4 |
| DVI-I | 1 |
| Stereo speaker socket | 1 |
| RJ45 network | 1 |
| Network Speed | 100Mbps or 1Gbps |
| Encryption | SSL/AES 128 bit |
| Performance | |
| Keyboard, mouse & mass storage devices | USB |
| Stereo speakers | 24 bit 44kHz |
| Resolution | Analog video up to 1600x1200@60fps, digital video up to 1920x1200@60fps, 100Mbps or 1Gbps network |
| Standards | |
| Approved Agency | cUL, UL, CE, FCC15 Class A |
UPC 636430058740
EAN 0636430058740
