Avocent HMX Computer Interface Module for Single VGA or DVI-D, USB, Audio
HMIQSHDI-001
Download the
Avocent HMX Manual (PDF)
Avocent HMX Manual (PDF)
The Avocent HMIQSHDI is a HMX IQ computer interface module single head DVI-I or VGA video, USB, audio for use with the Avocent HMX series.
The HMX IQ Computer Interface Modules are used to connect target computeres to the TCP/IP Area Network. HMX IQ selection depends on type and number of
displays to be supported and the video that is generated by the computer. All HMX IQ modules are hardware based and require no software or drivers to be loaded
on to the target computer. All HMX IQ modules are operating system (OS) independent, enabling the solution to function with Windows¨, Mac¨, Linux or Sun¨ computers.
The Avocent HMX Desktop Over IP Solution consists of: (all sold separately)
- HMX Manager
- HMX User Station
- HMX Computer Interface Module

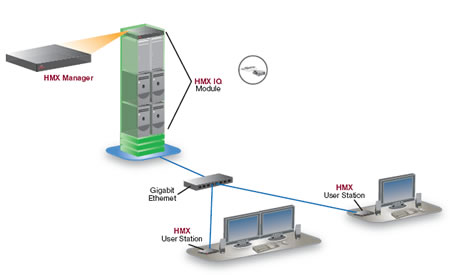

Avocent HMX Desktop Over IP Solution Diagram
Avocent HMIQSHDI-001 Specifications:
| Mechanical | |
| Height | 1.10 in (28 mm.) |
| Width | 5 in (127 mm.) |
| Depth | 7.87 in (200 mm.) |
| Weight | 1.65 lbs (0.75 kg.) |
| Format | External metal-cased module |
| Environmental | |
| Operating Temperature | 32° F to 104° F (0° C to 40° C) |
| Storage Temperature | -4° F to 122° F (-20° C to 50° C) |
| Power | |
| Power In | 5VDC |
| Consumption | 6W |
| Connections | |
| USB | 1 |
| DVI-D | 1 (supports digital video only) |
| VGA | 1 (supports analog video only) |
| 3.5mm stereo speaker jack | 1 |
| RJ45 network | 1 |
| Network Speed | 100Mbps or 1Gbps |
| Encryption | SSL/AES 128 bit |
| Performance | |
| Keyboard, mouse, mass storage | USB |
| Stereo speakers | 24 bit 44kHz |
| Resolution | Analog video up to 1600x1200@60fps, Digital video up to 1920x1200@60fps, 100Mbps or 1Gbps network |
| Standards | |
| Approved Agency | cUL, UL, CE, FCC15 Class A |
UPC 636430058825
EAN 0636430058825
Question: Does the HMXIQSHDI inclued VGA/DVI/USB cable
Answer: Yes, it will include DVI and USB cabling.
Question: What "Plug Type" is used for the HMIQSHDI-001?
Answer: Thank you for your inquiry. This particular HMX Computer Interface module/transmitter will connect to the server or computer via single head DVI-D or VGA for the monitor and a single USB for the mouse and keyboard. The HMIQSHDI transmitter would then plug into the network via standard CAT5/CAT5e/CAT6 cables and RJ-45 connectors. This particular HMX transmitter is for use with the HMX 1070 user station and optional HMX manager, depending on the particular requirements.
Because the HMX is a complex system, we would recommend giving us a call at 1-877-586-6654 to discuss your project.
Question: What is the part number for just the VGA/DVI/USB/Audio breakout cable?
Answer: Thank you for your inquiry. We believe the single head, 8 foot breakout cable for the HMIQSHDI is part number CBL0082.
There is also the 1.5 ft version that comes with the unit. Its part number is CBL0075.
Question: What is the maximum length of CAT6 between a HMIQSHD Transmitter and a HMX-1070 receiver
Answer: Thank you for your inquiry. In a point-to-point type installation, you can extend the UTP cable via junctions and hubs (subject to normal Ethernet cabling practices). Maximum length will be determined by types of cables used and other environmental factors but will generally follow standard network cable limitations.
In a networked configuration, the distance is limited only by the network itself.
Question: How can I view target computers with a local kvm switch?
Answer: Thank you for your inquiry. Unfortunately, due to the varied nature of user environments, detailed product support is beyond the scope of this simple FAQ. That being said, here are a few thoughts.
This unit is a remote computer interface module for the HMX desktop-over-IP extension system. It can be configured in a point-to-point type installation or a point-to-multipoint networked installation. To function properly, it requires at least one HMX user station. Once installed, the HMIQSHDI can be accessed via an IP address through an HMX user station. In that sense it operates similar to a KVM-over-IP switch. It is not clear to us, however, whether one could use a local KVM attached to this unit to see more than one target.
For more detailed support, we would recommend visiting the manufacturer's support community, found at: http://community.emerson.com/networkpower/support/avocent/kvmip/hmx/
Question: What is the Power supply part number for HMIQSHDI?
Answer: Thank you for your inquiry. The part number for the power supply is PSC0003-001.
Question: What is the maximum length of CAT6 between for point to point connectivity between a HMIQSHD Transmitter and a HMX-1070 receiver. without the network switch
Answer: Thank you for your inquiry. The HMX system uses standard network protocols to transfer data, so the distance is limited to 100 meters (328 ft) - subject to normal Ethernet cabling practices. In theory, a hub or junction can be used to increase the distance. Fiber media converters could also potentially be used to increase the distance.
Question: Does the HMIQSHDI include VGA/USB cables?
Answer: Thank you for your inquiry,
Yes, the Avocent HMIQSHDI transmitter includes a 3ft DVI, VGA, USB, and Analog Audio integrated KVM Cable (Note, only one video connectors can be plugged in at once). We also offer a 8ft version of the same cable (sold separately).
If you have any questions based on your application, or would like to procure the 8ft version of the cable, please feel free to contact your KVM Switches Online sales representative.
Question: Hi I would like to know if the HMIQHDD transmitter include DVI/USB cables
Answer: Thank you for your inquiry,
Yes, the Avocent HMIQSHDI transmitter includes a 3ft DVI, VGA, USB, and Analog Audio integrated KVM Cable (Note, only one video connectors can be plugged in at once). We also offer a 8ft version of the same cable (sold separately).
If you have any questions based on your application, or would like to procure the 8ft version of the cable, please feel free to contact your KVM Switches Online sales representative.
Question: Is HMIQSHDI-001 compatible with AMX5010?
Answer: Thank you for your inquiry. Unfortunately, no the HMIQSHDI-001 is specific for the HMX series only.
