Cyclades AlterPath OnSite 8-port serial console server



Recommended replacement: Raritan Dominon DKSX2-188
Alternative options: Contact Us

The AlterPath OnSite ATP7882 provides remote site management for branch offices and remote sites with a small, inexpensive solution for controlling IT infrastructure devices such as networking equipment, servers, and devices that perform specific applications. By combining the functionality of Cyclades AlterPath ACS (console server) and AlterPath KVM/net (KVM over IP KVM switch), the OnSite ATP7882 delivers KVM switch access, power control (through the AlterPath PM), and serial device access in an easy-to-use integrated platform.

The OnSite ATP7882 KVM over IP features enable complete secured control for graphical environments such as Microsoft Windows platforms (including the Microsoft Windows Server 2003 platform). The ATP7882 console management features include the ability to control UNIX-based, Linux-based, Solaris and IBM AIX servers as well as the newly introduced EMS protocols in Microsoft Windows Server 2003. Together the KVM over IP and console management features improve monitoring capabilities, allowing faster problem resolution and increased network uptime.

Cyclades AlterPath OnSite ATP7441 Backside
Cyclades AlterPath OnSite Backside


  • Access through built-in telephone modem, Ethernet connection or 2 PCMCIA slots that accepts additional interfaces (wireless, fiber, CDMA, GSM)

  • Advanced security with multiple means of authentication and encryption

  • Restricted user access and information

  • Easy configuration of and access to IT assets through Web page (http, https), command line and on-screen display user interfaces

  • Logs of user activity, software and configuration changes, alarms and server performance

  • Collaboration with two users viewing KVM-managed devices simultaneously

  • Quick install by wall mount, desk mount or rack mount

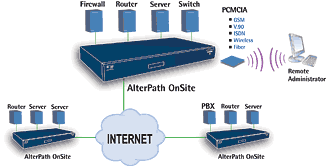

Cyclades ATP7882 Diagram
Cyclades AlterPath OnSite ATP7882 Diagram

Cyclades AlterPath OnSite ATP7882 Features and Benefits

  • Operating System: Linux
  • Accessibility:  In-Band (Ethernet) and Out-of-band (Dial-up modem) support PCMCIA support allows for alternative access interfaces, such as GSM modem, CDMA, V.90 modem, ISDN and wireless Ethernet
  • Security:  SSH v1 and v2, Local, RADIUS, TACACS+, LDAP, NIS, NTLM, Active Directory and Kerberos Authentication, Token-based strong authentication (SecurID), Local backup user authentication support
    PAP/CHAP authentication (for dial-up lines), Dial back support, IP Packet and Security Filtering, User Access Lists per port, System Event Syslog
    IPSec support
  • Console Management: Sun break-safe (Solaris Ready Certified), Break Over SSH support, Windows¨ Server 2003 EMS Support, Off-line data buffering - Local or Remote (NFS/Syslog), Timestamp for data buffering
    Unlimited number of simultaneous sessions, Simultaneous access on the same port (port sniffing), Secure clustering (central access to multiple console servers), Event notification (email, pager, SNMP trap)
  • Port Access: Directly by TCP port, IP address or server name, Telnet/SSH with menu, HTTP/HTTPS
  • System Management: Configuration wizard for first time users, Command Line Interface (Linux Shell), Web Management Interface (HTTP/HTTPS), On-screen display for local configuration, SNMP
    Optional integrated power management with the AlterPath PM
  • System Management via KVM:  Simultaneous access on the same port (local and 1 remote or 2 remotes with ONS 882), Support for VGA resolutions up to 1280 x 1024 @ 60HZ, CAT5-based KVM terminators for PS/2, PC USB, and Sun USB keyboard and mouse interfaces
  • Cabling: CAT5 compatible KVM adapters for simpler cabling (sold separately), Standard RS-232 serial cabling to console ports
  • Upgrades: Upgrades available on FTP site, no charge
    Flash upgradeable, TFTP support for network boot
  • Customization: Cyclades Development Kit (CDK) available for custom applications
  • Additional Protocols Supported: DHCP for dynamic IP address assignment, PPP/SLIP for dial-up, NTP for time server synchronization
    RFC2217 support for remote serial port access
  • Reduce operational costs stemming from maintenance and administration of remote IT assets
  • Increase IT personnel productivity
  • Decrease site visits and corresponding costs
  • Secure and consolidate remote access and control of all IT assets through a single appliance

Cyclades AlterPath OnSite ATP7882 Specifications

Dimensions 17 x 10.5 x 1.75 in
(43.18 x 26.25 x 4.45 cm)
Weight 16.0 lb (7.2 kg)
Operating Temperature 50°F to 112°F (10°C to 50°C)
Storage Temperature -40°F to 185°F (-40°C to 85°C)
Humidity 5% to 90% non-condensing
Operating Voltage & Power Supply

Universal AC, 100-240VAC, 50/60 Hz, 0.7 Amps max.

Supported Hardware
CPU MPC859PZP133A (PowerPC dual-CPU)
Memory 128MB SDRAM / 128MB Flash
Interfaces1 Ethernet 10/100BT on RJ45
1 RS232 Console on RJ45
2 RS-232 DTE on RJ-45 for power manager or external modem
1 V.90 internal modem on RJ-11
4 or 8 RS-232 serial ports on DB-9
4 or 8 KVM ports on RJ-45
PC Card Slots Modems (V.92 and ISDN), Secondary Ethernet, fast Ethernet (fiber optic), wireless LAN (GPRS, GSM and CDMA), compact flash and IDE drive

FCC Part 15A
EN55022, A (CE)
