32-Port DVI-D Switch System w/ USB 2.0

DVN-32PROS

The DVN-32Pro is a two-part switch system capable of sharing a DVI-D monitor, stereo speakers (optional) and USB 2.0 devices between thirty-two computers. It is RS-232 and Infrared compliant, capable of being controlled remotely via software.

Product Benefits and Features

  • Supports Mac, PC, Linux and Sun DVI
  • Supports High Resolution1920x1200 60Hz WUXGA
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Supports all USB 2.0 Devices (Flash Drives, Printers, Cameras, Scanners, etc.)
  • Supports USB 2.0 keyboard and mouse
  • Balanced stereo audio output (optional)
  • Front panel tactile switch with LCD display for local control
  • RS-232 control for remote control
  • Optional TCP/IP control

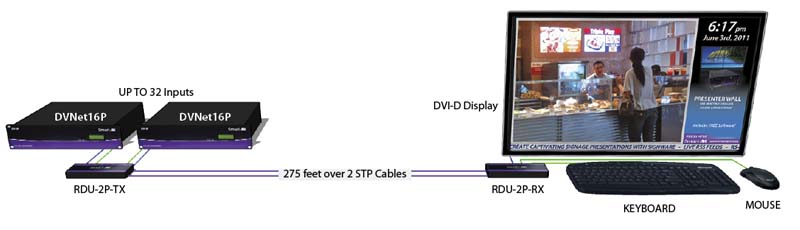

Product Diagram

Mechanical
Width17 in (438.8 mm.)
Height3.5 in. (88.9 mm.)
Depth6.75 in. (171.45 mm.)
Weight10 lbs (4.54 kg.)
Video
FormatDVI-D Single Line
Max Pixel Clock165 MHz
Input Interface(16) DVI-D 29-pin female
Output Interface(1) DVI-D 29-pin female
DDC5 volts p-p (TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
ResolutionUp to 1920 x 1200 @60Hz
Audio
Frequency Response20 Hz to 20 KHz
Impedance600 ohm
Nominal Level0-1.0V
Common ModeRejection at 60dB
Input Interface(16) 3.5mm Stereo Audio
Output Interface(1) 3.5mm Stereo Audio
USB
SignalingUSB 2.0, 1.1 and 1.0w/Internal Hub
Input Interface(16) USB Type B
Output Interface(2) USB Type A
Control
Front PanelTact Switch
RS232Via Software @ 9600 bps
Other
Operating Temperature32-104°F (0-40°C)
Storage Temperature20-140°F (-20-60°C)
Relative Humidity20 to 90%RH (No Condensation)
PowerExternal 100-240 VAC/5VDC2A @10W
ApprovalsUL, CE, RoHS Compliant
EmulationNO KEYBOARD OR MOUSE EMULATION
