HDMI, IR, CAT5e/6 Wall Plate Receiver (receiver only)

HDX-W100RXS

$149.00$116.10
Save $32.90
FREE Shipping on orders over $100
smartavi_madeinusa

The HDX-W100 Receiver is an HDMI over Cat5e/6 extender that utilizes slim wall plates to keep the wires as concealed as possible while providing 150ft high-quality HD video extension. The device supports high-resolution video up to 1080p (@60Hz). The unit makes controlling the attached video source easy with its bi-directional IR communication, so users can adjust the source while at the screen's location, hundreds of feet away. The HDX-W100 provides a fully-integrated solution for HDMI extension. Both the transmitter and receiver can be powered through a single 12V power adapter connected to the transmitter.
*Receiver Only.

Applications

  • Home Theaters
  • Control Rooms
  • Corporate/Academic Meeting Rooms
  • Information Terminals/Kiosks
  • Airports (Air Traffic Control and Terminal Installations)

Features

  • Extends HDMI Output over a Single Cat5e/6 Cable
  • Extends IR Control Signals for Remote Control
  • Supports uncompressed HD video up to 1080p (@60Hz)
  • HDMI 1.3 and HDCP Compliant
  • Supports Bi-Directional IR Communication
  • Transmits high-quality Dolby TrueHD and DTS-HD Audio Signals
  • Supports Automatic EDID Callback
  • Compatible with DVI-D with Converter
  • Cascadable for Additional Extensions
  • VESA DDC and Hot Swap Technology (HPD)
  • Receiver Features POE

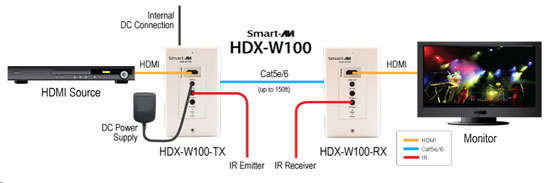

diagram

SmartAVI HDX-W100 Receiver Specifications

I/O Connector (Receiver)
InputRJ45 Jack / 3.5mm Jack for IR Receiver / 12V DC in Jack
Output3.5mm Jack for IR Emitter / HDMI-A 19PIN Socket
ResolutionUp to 1080p (@60Hz)
Audio FormatUp to PCM 8 channel, Dolby Digital, TrueHD, and DTS-HD MAster Audio
IR Range38kHz
Video Bandwidth4.95 Gbps
Input Video Signal 1.2 Volts Point-to-Point
Input DDC Signal5 volts Point-to-point
UPC / EAN Barcode icon
UPC 813280021944
EAN 0813280021944
