Secure 8‑Port 4K KVM Matrix with Dual‑View & Tamper Protection

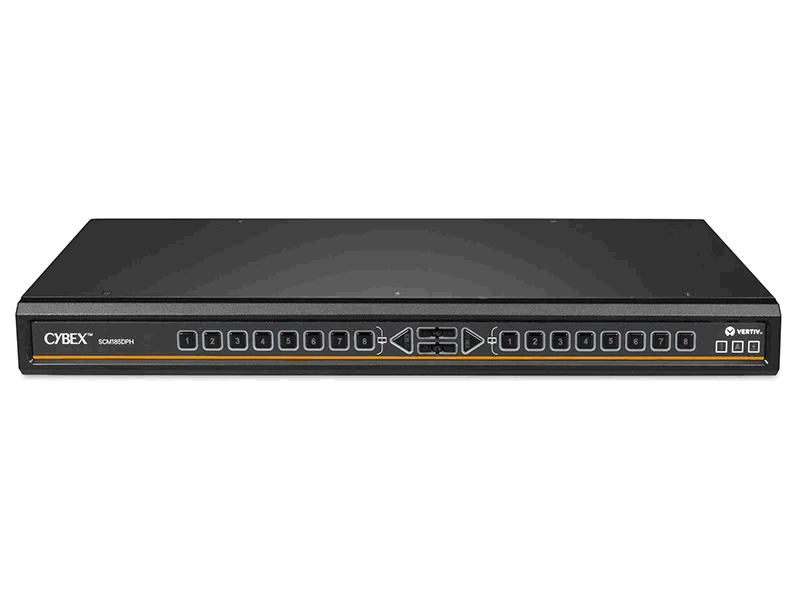

Vertiv Cybex SCM185DPH-400: Secure 8-Port 4K KVM Matrix with Dual-View and Tamper Protection

Elevate Your Secure Access with the SCM185DPH-400

The Vertiv Cybex SCM185DPH-400 is a cutting-edge secure desktop matrix switch built for high-assurance environments. Ideal for managing multiple classification levels or securely accessing isolated systems, this device combines performance, flexibility, and security in a single, space-saving solution.

Key Features and Benefits

Multi-system access, simplified

• Connects to 8 isolated computers and supports 2 local users, allowing centralized control across systems from one console.
• Features cursor navigation switching (cns), enabling intuitive system switching by simply moving the mouse across screen borders.

Ultra high-resolution video support

• Supports resolutions up to 4k UHD at 60 hz for crystal-clear visual performance.
• Universal video ports allow flexible connections using displayport, hdmi, or dvi-d.
• Compatible with modern touchscreen displays for interactive environments.

Comprehensive security architecture

• NIAP common criteria PSD v4.0 certified to meet strict security requirements for secure peripheral switching.
• Equipped with tamper-resistant hardware, active intrusion detection, and tamper-evident holographic seals.
• Supports unidirectional data flow for all connected peripherals to prevent reverse data leaks.
• Ensures total data separation through isolated switch ports.
• Features freeze DPP and audio channel locking to assign USB or audio peripherals to a specific system regardless of switching.
• supports CAC and biometric readers for secure authentication across connected computers.

Flexible and reliable operation

• Wide input power range of 100-240 v ac, suitable for global deployment.
• Efficient power consumption with a maximum draw of 45 w.
• Compact desktop or 1u rack-mountable design with a footprint of 17.3" × 7.3" × 1.7".
• Weighs approximately 5.4 lb and operates in temperatures from 32°f to 104°f (0°c to 40°c).
• Comes with a 3-year limited warranty for added peace of mind.

Why choose the Vertiv SCM185PDH-400?

This is more than a typical KVM switch. the SCM185DPH-400 is engineered for professionals in government, defense, intelligence, finance, and critical infrastructure who demand uncompromising security and productivity. with robust features, streamlined control, and industry-leading compliance, this solution empowers secure workflows without compromise.
