HDBaseT DVI-D , RS232, CAT5/5e/6 Receiver
SDX-RXS
Save $66.01

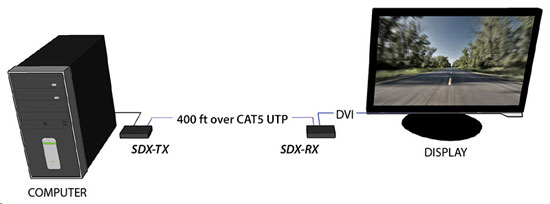

Using HDBaseT technology, the SDX DVI extender is capable of sending a DVI-D signal up to 400 feet over a single conventional and inexpensive Cat5e/6 cable. HDBaseT technology is superior to older DVI extenders that require special Cat6 shielded cable to go a short distance. The SDX also has RS-232 and IR extension, giving you the ability to control your displays or devices remotely.
Applications
- Security
- PC Networking
- Conference Center Systems
- Point of Sale
- Camera Surveillance
- Video Phone
- Control Room Systems
- Recording Studio
- PC KVM Extension
Features
- Extends DVI-D up to 400 feet (120m) from the source
- Data recovery for digital video
- Supports up to 1920x1200 digital video resolution
- Automatic DDC Learning
- Uncompressed Video HDBaseT
- RS-232 extension allows for remote control of displays
- External power adapter for transmitter and receiver unit
- Plug and play

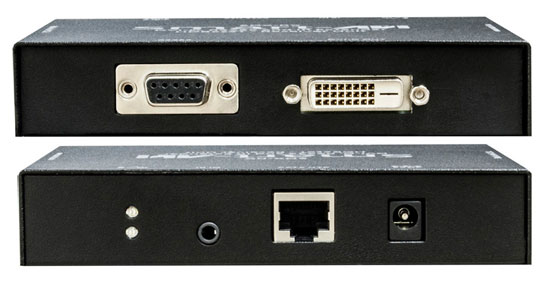

SmartAVI SDX-RXS Receiver Specifications
| Mechanical | |
| Height | 1 in. (2.54 cm) |
| Width | 5.1 in. (12.95 cm.) |
| Depth | 3.62 in. (9.19 cm.) |
| Video Format | DVI-D |
| Maximum Pixel Clock | 165 MHz |
| Video Input Interface | (1) DVI-D 29-pin female |
| Video Output Interface | (1) DVI-D 29-pin female |
| Resolution | Up to 1920x1200 @ 60Hz and up to 4K/2K (3840x2160) @ 30Hz |
| DDC | 5 volts p-p (TTL) |
| RS232 Input Interface | DB9 (female) |
| RS232 Output Interface | DB9 (female) |
| Speed | @115 Kbps |
| IR Input Interface | (1) 3.5 mm (female) |
| IR Output Interface | (1) 3.5 mm (female) |
| Frequency Response | 30KHz to 80KHz |
| Power | External 100-240 VAC/5VDC3A @20W |
UPC 813280019309
EAN 0813280019309
