SmartAVI 2-Port Smart Remote Power Unit with EU Socket

SRP-02REU

$399.00$310.91
Save $88.09

End-Of-Life (EOL)
For stock: Contact Us

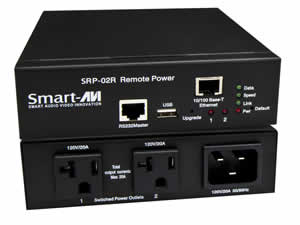

The SmartAVI SRP-02REU is a 2-Port Smart Remote Power Unit with EU Socket.

SmartAVI SRP-02REU Features:

The SRP-02R series power distribution unit (PDU) allows you to:

  • Reboot your computer or other devices remotely via the internet
  • Control power usage by creating schedules to save energy and money
  • Monitor power usage to determine how much electricity has been used
  • Securely monitor, control and reboot devices from anywhere in the world
  • Accessible via RS232, IE, Telnet, Email and SNMP
  • Supports AUTO-MDIX via one RS232 service port & one 10M/100M-T RJ45 ethernet port
  • Supports secure access ethernet connection, encrypted SMTP transfer and https security
  • Configurable with DHCP or static IP
  • Supports per outlet event timers and clock
  • Supports simple internet firewall for added security
  • Autonomous ICMP AutoPing for each power outlet
  • Integrated SNMP agent and trap notification message capability
  • POP3/SMTP for sending and receiving control commands or data
  • Supports per port access management up to 8 users
  • Local and remote temperature and current sensing
  • Dial-up modem support via local serial port
  • Handles large current equipment up to 15-40A 100-240V

SmartAVI SRP-02REU Applications:

  • Control the power to mission critical devices such as a colocation servers, ATMs or cash registers.
  • Monitor how much energy is used by devices
  • Reboot servers when they become unresponsive
  • Schedule times to power off unused devices to save energy and money

SmartAVI SRP-02REU Application Diagram
SmartAVI SRP-02REU Application Diagram

 SmartAVI SRP-02REU Specifications:

Mechanical (Chassis Dimensions)
Width 6.0 in. (15.2 cm.)
Height 1.75 in. (4.4 cm.)
Depth 6.7 in. (17.1 cm.)
Enter Plug 1
Supply Socket NEMAS-15P-NEMAS-20P CEE7/7 BS1363 IEC60309 NEMA L6-20P NEMA L6-30P
Equipment End IEC60320-C20
Outlets (2) NEMAS-20R
Input Current 20 Amp
Input Voltage 100-240 VAC
Console Port Baud Rate: 115200; 8 data bits; no parity; 1 stop bit; no hardware handshaking
Ethernet 10/100 Base-T, support AUTO-MDIX
Network Protocol ICMP, IP, TCP/UDP, DHCP, Telnet, DNS, POP3/SMTP, HTTP, HTTPS, and SSL
Display 6 LEDs
Environmental
Operating Temperature 0-55 °C (32-131°F)
Storage Temperature 20-85 °C (-4-185 °F)
Humidity 10-90% RH
UPC / EAN Barcode icon
UPC 813280023511
EAN 0813280023511
