Icron USB 2.0 Ranger 2101 1 Port Cat5 Hi-Speed Extender System


Save $26.33

Replaced by: Icron Ranger 2211
Alternative options: Contact Us

The Icron USB Ranger 2101 00-00231 is a single port extender that extends USB 2.0 beyond the desktop, up to 100m over standard Cat 5 UTP cable using ExtremeUSB technology.  The Ranger 2101 system includes a Local Extender (LEX) module, a Remote Extender (REX) module, and power adapter.  The USB Ranger 2101 extender supports USB 2.0 peripheral devices at speeds up to 480 Mb/s over a distance of 100m/330ft, doubling the extension distance of 50m/165ft of the previous generation.

Powered by patented ExtremeUSB technology, the USB Ranger 2101 supports a single device port. This extender enables host computer and peripheral extension over standard Cat 5 UTP cable. Note the remote units require AC power for proper operation. The products ship with the required power adapter.

Icron 00-00231 Features:

  • Supports USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices
  • Operates with USB 2.0 high-speed host controllers and USB 1.1 classic hosts
  • True plug and play, and ready to operate right out of the box. No new driver installation required
  • Supports all major operating systems including Windows¨, Mac OS¨, and Linux¨
  • Single port USB extender. Number of devices can be increased using standard USB hubs
  • Ideal for I/O devices, printers, scanners, web cams, hard drives, flash drives and mp3 players
  • Bus powered local unit at computer. A/C power at remote unit provides standard 500mA at USB

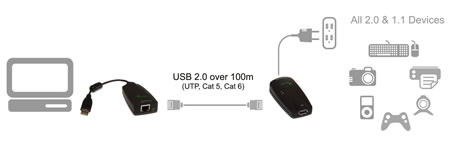

Icron USB Ranger 2.0 Extender Application Diagram
Icron USB Ranger 2.0 Extender Application Diagram

Icron 00-00231 Specifications:

MechanicalREX UnitLEX Unit
Dimensions1.72 x 3.43 x 0.85 in.
(44 x 87 x 24 mm.)
1.72 x 3.43 x 0.85 in.
(44 x 87 x 24 mm.)
Shipping Weight1.1 lbs. (0.5 kg.)
Operating Temperature0°C to 50°C
Power Adapter Maximum Rating5V DC @ 1.5A
USB1 x USB Type A1 x USB Type A - 6' captivated cable
Link1 x RJ451 x RJ45
Range330 ft. (100 m.) over Cat 5 (or better) cable
Current available to USB at REX500 mA
Regulatory TestingFCC, CE Class A
ESD RatingEMC EN-61000-4-2 4kV Contact, 8kV Air


Question: can you just buy power supplies for this unit?
Answer: Yes, the power supply for this product is available for order separately. To order the part (part number: 21-00046), please give us a call at: 1-877-586-6654.

Question: Do you have a distributor for this in the Philippines? Can you advise their contact information?
Answer: Thank you for your inquiry. You can check for your local Icron distributor on the following web page: http://www.icron.com/where-to-buy/.
