Icron EL5363 4K HDMI + USB 2.0 CAT5 KVM Extender, 330ft
00-00386
Save $192.39
The Icron EL5363 (00-00386) KVM Extender provides HDMI uncompressed HD video, and USB 2.0 up to 100 (330 ft) meters over a single CAT 5e/6/7 cable. This extender supports HDMI video features such as 1080p, 4Kp30, Deep Color and CEC/HDCP pass-through. This KVM extender can be used in applications for proAV, interactive digital signage, security, medical, and industrial. There is no video degradation even at the full 100 meter distance. The system supports full USB 2.0, providing the ability to control keyboards, mice, flash drives, audio peripherals and other USB 2.0 and 1.1 devices.

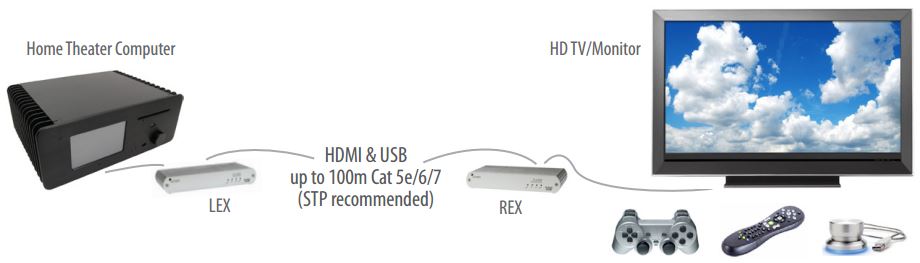

Icron EL5363 (00-00386) Application Diagram
Icron EL5363 Features & Benefits
- Long Distance: Video and USB over a single solid core shielded Cat 5e (or better) cable at distances up to 100m (330ft)
- 4K Support @ 30p / Full uncompressed 1080p or 1920 x 1200 resolution HD video.
- 3D Support
- Deep Color & x.v. Color Support
- HDCP / CEC / Lip Sync Pass-through
- ExtremeUSB suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux - USB 2.0: all device types supporting up to 40 Mbps. Recommended with keyboard, mouse, flash drive, printer, speakers, microphones, USB 1.1 web camera and other USB devices which require moderate amounts of bandwidth.
- Fan-less extender design
- Mounting Kit allows units to be mounted to walls, desks or trays for 19" racks.
- 2-year warranty
EL5363 (00-00386) Package Contents
- (1) Icron EL5363 Transmitter (LEX)
- (1) Icron EL5363 Receiver (REX)
- (1) 6ft HDMI cable
- (1) 6ft / 2m USB 2.0 Type-A to Type-B Cable
- (1) Power Adapter and US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
EL5363 Resources
Icron EL5363 Datasheet (PDF)
Icron EL5363 Manual (PDF)
Icron EL5363 Quick Start Guide (PDF)
Icron EL5363 (00-00386) Specifications
| Mechanical | |
| LEX (Local Extender) | 112mm x 175mm x 30mm (4.4" x 6.9" x 1.2") |
| REX (Remote Extender) | 112mm x 175mm x 30mm (4.4" x 6.9" x 1.2") |
| Environmental | |
| Operating Temperature | 0° to 40° (32° to 104°) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| LEX (Local Extender) | |
| Video Connector | 1 x HDMI |
| USB Connector | 1 x USB 2.0 Type B Receptacle |
| Link Connector | 1x RJ45 |
| Power Supply | 100-240V AC input, 5V DC output |
| REX (Remote Extender) | |
| Video Connector | 1 x HDMI |
| USB Connector | 3 x USB Type A Receptacles |
| USB Current | 500mA for each USB port |
| Link Connector | 1 x RJ45 |
| Power | 100-240V AC input, 5V DC output |
| Compliance | |
| EMC | FCC (Class A), CE, ICES-003 |
| Compliance | RoHS2 (CE) |
| Range | |
| Reach | 330 ft (100m) at full resolution |
| Interconnection Cable | RJ45 connector supporting solid core Cat 5e (or better) cable. |
| Recommended Interconnection Cable | Solid core Cat 6 is recommended for best results. |
This unit is the recommended replacement for the Icron EL5200 (00-00319)
