USB 3-2-1 Starling 3251C-10-PL
00-00457
Save $375.00

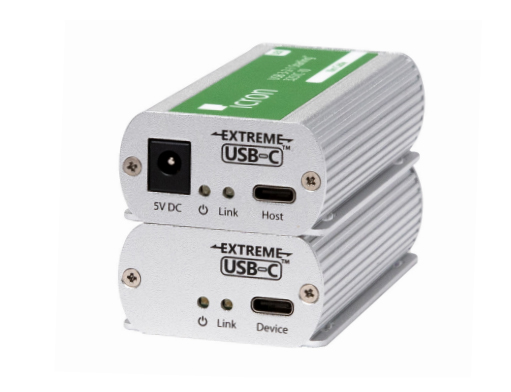

About the Icron USB 3-2-1 Starling 3251C-10-PL
Plenum Cable Model
The Icron USB 3-2-1 Starling 3251C-10-PL is the world's first USB 3.2 Gen 1 extender utilizing a custom CM or Plenum fire rated cable with ExtremeUSB-C technology, extending USB 3, 2, or 1 devices concurrently up to 10 meters. The Starling 3251C-10-PL is used to extend high-resolution USB 3 conferencing cameras, Video Capture devices, USB 3 and USB 2 flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, audio devices, and many other USB 3, 2, and 1 devices.
The Starling 3251C-10-PL is the world's first backward-compatible USB 3.2 Gen 1 extender enabling users to extend USB 3.2 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a custom 10m Cable while being completely USB BUS powered. The Starling 3251C-10-PL comes with Plenum fire-rated cables. Utilization includes extending USB 3 conferencing cameras, video capture devices, and audio devices for boardrooms and conference rooms. The Starling extender series has been successfully tested with most major USB 3.1 conferencing cameras combined with major UC conferencing applications (Zoom, Teams, Webex, Hangouts Meet).

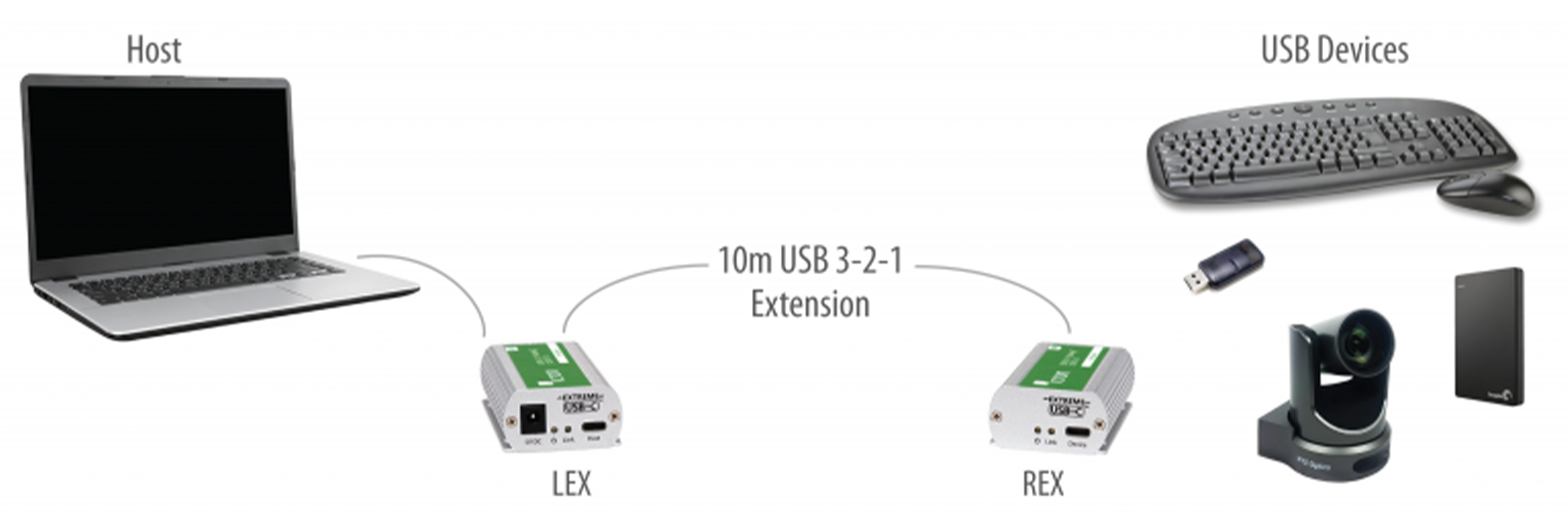

Icron USB 3-2-1 Starling 3251C-10-PL Application Diagram
Icron USB 3-2-1 Starling 3251C-10-PL Features
- USB 3.2 Gen 1 data rate up to 5Gbps
- Supports all USB 3.2, 2.0, 1.1 devices simultaneously at full bandwidth
- USB-C port connectivity (USB data only)
- Bus-powered with optional DC input
- Single 10-meter CM or Plenum-rated cable
- FCC and CE (Class A) compliant
- 2-Year warranty
- ExtremeUSB-C suite of features:
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play - no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Icron USB 3-2-1 Starling 3251C-10-PL Applications
- Remote Storage
- Security & Monitoring
- Conferencing Rooms
- Test and Measurement
Icron USB 3-2-1 Starling 3251C-10-PL Package Contents
- (1) USB 3-2-1 Starling 3251C-10-PL LEX
- (1) USB 3-2-1 Starling 3251C-10-PL REX
- (1) USB 3.2 Gen 1 USB-C Cable (USB Only)
- (1) Custom Link Cable (10m, CM or Plenum Rated)
- (1) Cable Pulling Eye
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
Icron USB 3-2-1 Starling 3251C-10-PL Resources
USB 3-2-1 Starling 3251C-10-PL Datasheet (PDF)
Icron USB 3-2-1 Starling 3251C-10-PL Manual (PDF)
Icron USB 3-2-1 Starling 3251C-10-PL Quick Start Guide (PDF)
Icron USB 3-2-1 Starling 3251C-10-PL Specifications
| Mechanical | |
| LEX (Local Extender) | 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9") |
| REX (Remote Extender) | 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9") |
| Environmental | |
| Operating Temperature | Operating: 0C - 50C (32F - 122F) |
| Storage Temperature | -20C - 70C (-4F - 158F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| LEX (Local Extender) | |
| USB Connector | 1x USB 3.2 Gen 1 Type-C Receptacle |
| Link Connector | 1x ARJ45 Link Port |
| Network Pass Through | 1x ARJ45 Link Port Ethernet 100/1000 Port |
| Power Supply | 5V 3A DC Jack (POE dor standard opperation, additional power is required see 21-00115 power supply) |
| REX (Remote Extender) | |
| USB Connector | 1x USB 3.2 Gen 1 Type-C Receptacle |
| Link Connector | 1x ARJ45 Link Port |
| Network Pass Through | 1x ARJ45 Link Port |
| Available Current | Up to 900mA |
| Compliance | |
| EMC | FCC (Class A), CE (Class A) |
| Compliance | RoHS2/3 (CE) |
| USB Device Support | |
| USB Speeds | SuperSpeed 5Gbps, High-Speed, Full-Speed, Low-Speed |
| Bandwidth | Up to 5Gbps |
| Device Types | All Device Types and Classes (Control, Interrupt, Isochronous and Bulk) |
| Host Compatibility | OHCI, UHCI, EHCI, xHCI |
| Maximum Number of Devices and/or Hubs | 30, including hubs |
| Available Current at REX | Up to 900mA |
| Range | |
| Point-to-Point | 10 meters (32.8 feet) |
Icron USB 3-2-1 Starling 3251C-10-PL Part Numbers
| Part Number | Name |
| 21-00111 | 5V 3A Power Adapter (Level VI) 1.7mm ID |
| 21-00115 | NA Ungrounded Power Cord |
| 21-00116 | EU Ungrounded Power Cord |
| 21-00117 | UK Ungrounded Power Cord |
| 21-00118 | AU Ungrounded Power Cord |
| 21-00109 | JP Ungrounded Power Cord |
