Minicom Digital Signage USB Extender

0DT23011

Discontinued
Recommended replacement: Icron Ranger 2211
Alternative options: Contact Us

The Minicom DS 0DT23011 USB Extender is an easy to use hardware solution that extends any USB peripheral device from the host computer to a distance of 45m/150ft. The Minicom DS USB Extender overcomes the 5m/16ft distance limitation of direct USB connection to the host computer, using standard CAT5 cable.

The Minicom DS USB Extender is the simplest and most economic way to extend your USB device beyond the standard 5m/16ft, while preserving the investment in existing hardware.

0DT23011 Applications:

The USB Extender provides the ideal solution for both SOHO and corporate environments. Applications are limitless and include security cameras, barcode scanners, extension of keyboard in a conference room, printers, scanners or anywhere with a potential need to extend the distance between a host computer and a peripheral USB based device.

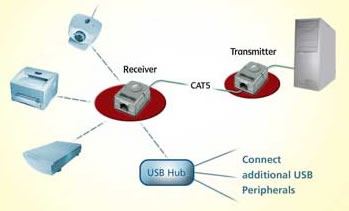

Minicom DS USB Extender Functional Diagram
Minicom DS USB Extender Functional Diagram

0DT23011 Features and Benefits

  • Overcomes the USB distance limitation - extends up to 45 meters/150ft
  • Pure hardware, requires no external power adapter
  • No additional software required for either computer or peripheral device
  • 100% compatible - compatible with any USB device
  • Compliant with the standard specifications of USB 1.1
  • Patented ASIC's (Application Specific Integrated Circuits) built in
  • Embedded USB Transceivers at both ends to prevent signal loss

Minicom DS 0DT23011 Specifications:

Ports Master Unit Remote Unit
Upstream Port  USB Type A Male USB Type A Female
Downstream Port RJ45 Connector RJ45 Connector
Environmental
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -40°C to 85°C / -40°F to 185°F
Cables
Master Built-in Cable Length 0.3 meters / 1.0 Feet
Interconnect Cable Standard Category5/5e/6 Network Cable
Max Cable Length 45 meters / 150 feet
Supply Current Drawn 20mA
Certification FCC ClassB, CE
