Minicom by Tripplite Smart KVM Extender USB

0DT60001

$352.00$249.03
Save $102.97
FREE Shipping on orders over $100

The Minicom by Tripplite 0DT60001, Smart KVM Extender USB, is a versatile, plug and play solution, which opens up options by enabling an extended physical separation between a KVM workstation and a computer or KVM switch. A user can work at a KVM workstation up to 150m/500ft from a computer or KVM switch.  The Smart KVM Extender was created to be used when there is a benefit to having a KVM workstation in a physically separate place from a computer or KVM switch. Some examples include:

  • Access to computers or KVM switches centralized in one secure, environmentally controlled location, like clean rooms and kiosks
  • Users who want to access a computer or KVM switch at a workstation, without having to get up and go to a server room
  • SOHO (Small Office/Home Office) environments, such as an executive and secretary, where users at two workstations control one computer

The KVM Extender USB offers a security feature called exclusive mode, where a user can prevent the second user from accessing the computer or KVM switch at a given time.

Minicom by Tripplite Smart KVM Extender USB Receiver & Transmitter Back Views
Minicom by Tripplite Smart KVM Extender USB Receiver & Transmitter Back Views

Minicom by Tripplite 0DT60001 Features:

  • Compatible with any KVM switch/computer - extends console 150m/500ft from server room or rack
  • Pure hardware solution - no software/network conflicts
  • Supports high-resolution video - up to 1600 x 1200 @ 75 Hz
  • All cables included - off-the-shelf retail package, easy to maintain
  • Simple to install and operate
  • No external power needed at transmitter end
  • Supports all major OS
  • Use with Minicom by Tripplite's two user KVM switches: Smart 216, Smart 232, and SmartRack 232
  • 3 year warranty

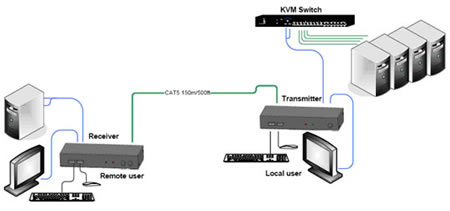

Minicom by Tripplite Smart KVM Extender USB Application Diagram
Minicom by Tripplite Smart KVM Extender USB Application Diagram

Minicom by Tripplite 0DT60001 Specifications:

Mechanical Transmitter Receiver
Dimensions 3.3 x 4.4 x 0.98 in.
(85 x 112 x 25 mm.)
3.3 x 4.4 x 0.98 in.
(85 x 112 x 25 mm.)
Shipping Weight 3.9 lbs. (1.705 kg.) 3.9 lbs. (1.705 kg.)
Power Supply From computer or external power adapter 12VDC 1A External power adapter 12VDC 1A
Cables & Connectors
HDD15F (VGA+USB cable) for computer or KVM switch for optional local computer
HDD15 for monitor for monitor
USB x 2 Console KB/M Console KB/M
RJ45 System System
RJ11 External control unit External control unit
Environmental
Operating Temperature 0° C to 40° C/32° F to 104° F
Storage Temperature -40° C to 70° C/-40° F to 158° F
System
System Cable CAT5 FTP cable 2x4x24 AWG Solid Wire
Maximum Distance 150m/500ft
Keyboard & Mouse support USB keyboard and mouse
Operating Systems Win and Linx
Management Push button or external control unit
Screen resolution Up to 1600X1200 @ 75Hz
Question: Is the power supply for the receiver included?
Answer: Thank you for your inquiry. Yes, the external power supply for the receiver unit is included.

Question: Can you ship it to Israel ? What would be the cost ?
Answer: Thank you for your inquiry. Here is a link to our international order policy: https://www.kvm-switches-online.com/info.html#International Orders
