Minicom by Tripplite Smart 108, 8 Port CAT5 KVM Switch

0SU22081A

$554.58

Discontinued
Replaced by: Tripp Lite B072-008-1
Alternative options: Contact Us

The Minicom by Tripplite Smart 0SU22081A is a single-user analog KVM switch which gives you the ability to control multiple computers or servers from a single keyboard/ video/mouse console. The rack mountable, 1U-sized switch features innovative ROC (RICC on cable) dongle technology that directly connects you to each server in the rack, eliminating cable clutter and the need for multiple consoles.

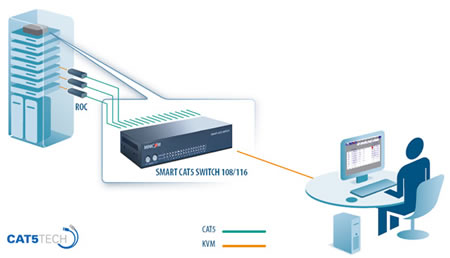

Minicom by Tripplite Smart CAT5 KVM Switch Application Diagram

Minicom by Tripplite Smart CAT5 KVM Switch Diagram

Minicom by Tripplite 0SU22081A Features and Benefits:

  • Control 8 servers from one keyboard / video / mouse console
  • New ROC (RICC on Cable) technology
  • Extend distance between computer and switch up to 30m/100ft
  • Rack-mountable, sleek, 1U space saving design
  • Multi-layer security protects your corporate data
  • Better server management, choice of On Screen Display, serial port or push button control
  • Multi-platform - control USB, PS/2 & Sun servers from the same console

Minicom by Tripplite Smart 0SU22081A Specifications:

Mechanical
Height 1.63 in. (41.5 mm.)
Width 8.46 in. (215 mm.)
Depth 4.80 in. (122 mm.)
Weight 2 lbs. (920 g.)
Environmental
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 80% non-condensing relative humidity
Power
Supply Internal switching 85-260 VAC 50 / 60 Hz
Connections
System RJ45
Serial RJ11
Local KVM HDD15/MinDin6/MiniDin6
Number of Ports 8
Resolution Up to 1600x1200@75Hz
Transmission Distance ROCs up to 99 ft. (30 m.)
System Cable CAT5/ 5E/ 5+/ 6/ or 7 cables. FTP or UTP 2x4x24 AWG solid wire
Mouse PS/2, Wheel mouse, Intellimouse, 5-button mouse
Operating System and Platforms DOS, Windows, LINUX, UNIX, MAC and all other major operating systems
Question: Do you have any inventory of this?
Answer: Thank you for your inquiry. Unfortunately, we do not have any stock on this item remaining.

The manufacturer of this item recommends the B072-008-1 NetCommander: https://www.kvm-switches-online.com/b072-008-1.html as a replacement item.
