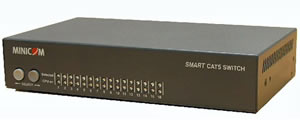

Minicom by Tripplite Smart 116, 16-Port CAT5 KVM Switch



Replaced by: Tripp Lite B072-016-1
Alternative options: Contact Us

The Minicom by Tripplite Smart 0SU22082A is a single-user, 16-port analog KVM switch which gives you the ability to control multiple computers or servers from a single keyboard/ video/mouse console. The rack mountable, 1U-sized switch features innovative ROC (RICC on cable) dongle technology that directly connects you to each server in the rack, eliminating cable clutter and the need for multiple consoles.

Minicom by Tripplite Smart 116 Backside
Minicom by Tripplite Smart 116 Backside

Minicom by Tripplite 0SU22082A Features and Benefits:

  • Control 16 servers from one keyboard / video / mouse console
  • New ROC (RICC on Cable) technology
  • Extend distance between computer and switch up to 30m/100ft
  • Rack-mountable, sleek, 1U space saving design
  • Multi-layer security protects your corporate data
  • Better server management, choice of On Screen Display, serial port or push button control
  • Multi-platform - control USB, PS/2 & Sun servers from the same console

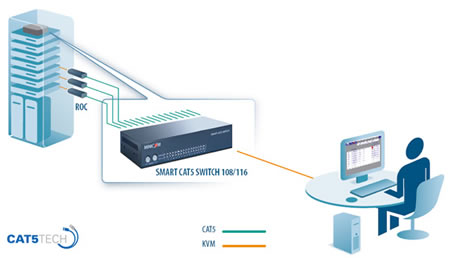

Minicom by Tripplite Smart CAT5 KVM Switch Application Diagram

Minicom by Tripplite Smart CAT5 KVM Switch Diagram

Minicom by Tripplite Smart 0SU22082A Specifications:

Height 1.63 in. (41.5 mm.)
Width 8.46 in. (215 mm.)
Depth 4.80 in. (122 mm.)
Weight 2 lbs. (920 g.)
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 80% non-condensing relative humidity
Supply Internal switching 85-260 VAC 50 / 60 Hz
System RJ45
Serial RJ11
Local KVM HDD15/MinDin6/MiniDin6
Number of Ports 16
Resolution Up to 1600x1200@75Hz
Transmission Distance ROCs up to 99 ft. (30 m.)
System Cable CAT5/ 5E/ 5+/ 6/ or 7 cables. FTP or UTP 2x4x24 AWG solid wire
Mouse PS/2, Wheel mouse, Intellimouse, 5-button mouse
Operating System and Platforms DOS, Windows, LINUX, UNIX, MAC and all other major operating systems
Question: Hello. I am interested in this product. Do you have it in stock? My residence is in Germany. Can you please let me know if you deliver to Germany and how long the delivery time would be? Thank you in advance.
Answer: Thank you for your inquiry.
For a local distributor of Tripp Lite products try this link:

KVM Switches Online does ship to Germany, but there are certain requirements for international orders. First, there is $1000 minimum and a $100 fee. Prepayment via PayPal or wire transfer is required and both have additional fees associated. We also require the use of a 3rd party shipping account to bill all shipping charges, customs, duties and fees. If you would like to proceed, please contact KVM Switches Online sales representative at 1-877-586-6654.
