Minicom by Tripplite 0SU70017 IP Control Unit

0SU70017A

$688.00

Discontinued
For upgrade or replacement options: Contact Us

The Minicom by Tripplite 0SU70017A is a IP Control remote KVM gateway which provides access and control of your computers and servers, no matter how distant, via a standard web-browser. Featuring KVM IP technology that penetrates to the target computer's innermost BIOS level, IP Control gives you the power to access and reboot downed devices without having to be physically within reach. Desk-mountable and small enough to fit in the palm of your hand, IP Control comes with 128-bit SSL security as standard, and is equally adept in single computer environments, small to medium size data centers, and digital signage networks.

IP Control 0SU70017A is an indispensable tool for remotely supporting mission-critical computers and intelligent devices where every instant of added downtime becomes critical to business, or perilous to life. IP Control lets you directly access the remote computer's BIOS, and accurately diagnose the system fault.

Mincom's IP Control is equally at home providing remote access and control for small to medium size data centers that employ a variety of KVM switches and servers. IP Control seamlessly adds-on remote, out-of-band KVM and Serial access without forcing you to replace your entire KVM switch inventory, and thereby safeguarding your existing KVM investment.

With IP Control you can remotely monitor and maintain computer media players for digital signage. It controls in real time, and with virtually no extra cost, the distribution of media content on any number of players and enables troubleshooting even when the operating system is down.

Featuring proprietary technology, the Minicom by Tripplite IP Control provides superior video quality and mouse control over LAN, WAN and Internet. No matter how far away your computers or servers, you can access and control them with the same user experience as if they were directly at hand.  In addition to KVM access, IP Control features a built-in port providing remote Serial access to power management switches, routers, headless servers and other Serial-connected devices.

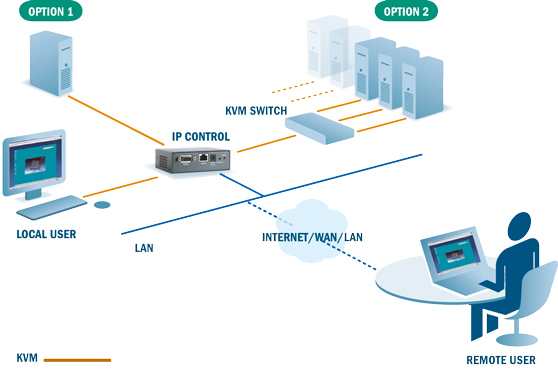

Minicom by Tripplite IP Control Application Diagram
Minicom by Tripplite IP Control Application Diagram

Minicom by Tripplite 0SU70017A Features:

  • Desk-mountable KVM IP solution
  • Compatible with any KVM switch
  • BIOS level access
  • Out-of-band operation
  • Remote Serial access
  • Ideal for remote support/remote service applications
  • Superior remote video quality & mouse control
  • Secure, 128-bit SSL encryption

Minicom by Tripplite 0SU70017A Specifications:

Mechanical
Height 1.1 in. (3 cm.)
Width 3.1 in. (8 cm.)
Depth 3.9 in. (10 cm.)
Weight 0.45 lb. (0.2 kg.)
Environmental
Operating Temperature 0°C to 40°C / 32°F to 104°F
Power
Supply External power adapter 3.3VDC 2A
Connections
Ethernet RJ45 - 10/100 Mbit/sec autosensing
Serial RJ45
Local KVM connection Screen HDD15, Keyboard/Mouse - MiniDIN6
Computer / switch connection Screen HDD15, Keyboard/Mouse - MiniDin6 3 in 1 Cable 1.8m (supplied with system)
Video and Mouse Synchronization Both auto and manual modes
System Host Computer Client Computer
Operating systems Dos, Windows, Novell, Linux, SUN Solaris for PC Windows 2000 computer with IE 6.0 or higher and ActiveX

Resolution Up to 1600x1200 @85Hz

Recommended resolution should be higher than resolution on local computer
