Minicom by Tripplite PX USB KVM IP Gateway



For upgrade or replacement options: Contact Us

The Minicom by Tripplite PX 0SU70028 is a high performance KVM IP Gateway which provides complete BIOS level access and control of your computer or server, from any location.  The compact PX comes with 128-bit SSL security as standard, and is equally adept in small business environments, remote support applications, and Enterprise data centers.

The PX USB features virtual media technology allowing a remote user to effortlessly move files from his USB or CD-ROM drive to target servers that may be anywhere in the world. With PX you no longer have to be physically present at each server in order to install or recover software applications and install OS patches. This KVM solution multiplies the power and reach of every technician or small business administrator, giving them immediate and total control over their computer or server whether they are in the office, at home, or even on the road.

PX lets you instantly access the remote computer's BIOS, and accurately diagnose and even fix system faults - saving you the time and cost of a field technician roll out. PX is ideal for market applications running mission critical services on a single computer/server such as medical, telecom, security, Software as a Service, and banking and finance.

The single-port PX solves the problem of blocked server access in the data center. With a number of PX devices connected, multiple remote users can control multiple servers, all at the same time. Additional PX IP gateway devices can be added as your data center grows and the entire inventory can be managed under Minicom by Tripplite's global centralized server management system. The combination of and PX is ideal for corporations operating servers at multiple sites such as testing labs, university campuses, branch offices, and multi-floor facilities. The rack-mountable PX also uses Power over Ethernet (PoE) technology for efficient, clutter free power management.


  • The Minicom by Tripplite PX is also available in a PS/2 version (part # 0SU70018).
  • A power adapter (part # 0SU70042 - sold separately) is mandatory to use PX USB without PoE.

Minicom by Tripplite PX IP Gateway Features

  • Single port, palm-sized device
  • Virtual Media for complete remote management
  • Absolute Mouse Support for reduced installation hassle
  • BIOS level access over IP connection
  • Cost-effective & easily scalable
  • enabled
  • Ideal for isolated/widely distributed servers
  • Power over Ethernet & external power option

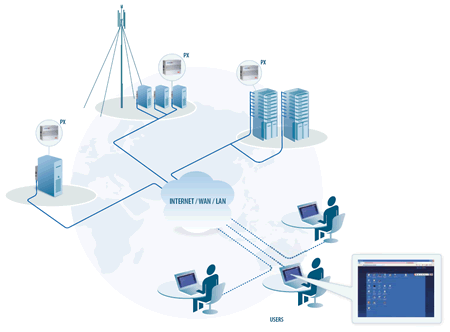

Minicom by Tripplite PX KVM IP Gateway Application Diagram
Minicom by Tripplite PX KVM IP Gateway Application Diagram

Minicom by Tripplite 0SU70028 Specifications:

Height 1.2 in. (33 mm.)
Width 4.13 in. (105 mm.)
Depth 3.15 in. (80 mm.)
Shipping Dimensions
4.1 x 9.0 x 5.9 in.
(105 x 230 x 150 mm.)
Weight 0.66 lbs. (0.3 kg.)
Shipping Weight 1.54 lbs. (0.7 kg.)
Operating Temperature 0°C to 40°C / 32°F to 104°F
Supply PoE 4.5W, optional external power supply 12V, 1000mA
Maximum Current Consumption Less than 135mA from PoE
Operating systems
Host Computer Windows 98 and higher, Novell, Linux, SUN Solaris and MAC
Client Computer Windows: 2000, XP, 2003 Server or Vista. With IE 6.0 or 7.0
Host Computer Up to 1600x1200@85Hz
Client Computer Recommended - client computer resolution should be higher than resolution on the host computer
Ethernet RJ45 - 10/100 Mbit/sec auto-sensing
26 Pin Connector for interchangeable Video and USB (keyboard, mouse and virtual media) cable
