Minicom by Tripplite Smart 216 IP KVM Switch
0SU70036A
The Minicom by Tripplite Smart 216 IP multi-user IP KVM Switch which enables one local and two remote users, access and control of up to 16 servers. In addition, two remote users can operate serial sessions for controlling serial devices such as routers, managed network switches or PDU's. These rack-mountable, 1U sized switches feature KVM over CAT5 technology that directly connects the switch to each computer in the server room, eliminating cable clutter and providing up to 30m/100ft of distance between server and switch. The Smart 216 IP has built-in web servers enabling two remote users seamless access to target servers via a single IP address. This IP KVM Switch offers seamless integration into Minicom by Tripplite's centralized management system - KVM.net¨ II.
Minicom by Tripplite Smart 216 IP Back
Minicom by Tripplite Smart 216 IP Features:
- 3 simultaneous KVM users (2 remote and 1 local)
- 2 additional serial session users
- BIOS level access
- USB keyboard and mouse console
- Compatible with KVM.net¨ II centralized management system
- Minicom by Tripplite KVM over CAT5 technology
- Multi-platform - PS/2 and USB support
- Extends distance between servers and switch up to 30 meters/100 feet
- Space saving - sleek, 1U rack mountable
- Seamless power control

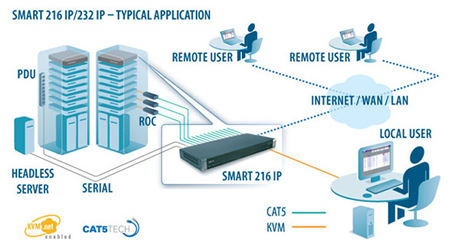

Minicom by Tripplite Smart 216 IP/232 IP Application Diagram
Minicom by Tripplite 0SU70036 Specifications:
| Mechanical | |
| Height | 1.7 in. (44 mm.) |
| Width | 17 in. (431 mm.) |
| Depth | 10.6 in. (270 mm.) |
| Weight | 5.165 lbs. (2.343 kg.) |
| Environmental | |
| Operating Temperature | 0°C to 40°C / 32° F to 104°F |
| Storage Temperature | -40°C to 70°C / -40° F to 158°F |
| Humidity | 80% non-condensing relative humidity |
| Power | |
| Supply | 100 - 240 VAC 50 / 60 Hz |
| Operating System | |
| Target Server | Windows, Novell, Linux, SUN Solaris |
| Client Computer | Windows 2000 or higher with IE 6.0 or higher and ActiveX |
| Resolution | |
| Target Server | 1600x1200@85Hz |
| Client Computer | Recommended: Resolution should be higher than local computer resolution |
| Video & Mouse Sync | Both auto and manual modes |
| Distance Switch to ROCs | 100 ft. (30 m.) |
| Security | 128-bit SSL encryption |
| System Cable ROC to Switch | CAT5 UTP/FTP Solid Wire 2x4x24 AWG |
| Connection Type | |
| Ethernet | RJ45 - 10/100 Mbit/sec autosensing |
| Serial | RJ45 x 2 |
| Local KVM Connection | Screen HDD15, keyboard/mouse - 2 USB |
| Servers | RJ45 |
Answer: Yes, this switch is compatible with windows 7.
Minicom states the Smart 216 IP operating systems compatibility as:
Target Server: Windows, Novell, Linux, SUN Solaris
Client Computer: Windows 2000 or higher with IE 6.0 or higher and Active
One note though, this does not guarantee compatibility with any particular mouse or keyboard software that you may be running.
Question: What is the warranty of this product ? Not the extendet one.
Answer: Thank you for your inquiry. This product will come with Tripp-Lite's 3-year limited warranty.
Question: Is it compatable with VMWare's ESX or ESXi?
Answer: This two user KVM is not operating system dependent, so we do not foresee a problem.
Question: Is this switch compatible with minicom dx432 switch? If so what management system does it use
Answer: Thank you for your inquiry. To ensure that we have all the information needed to best answer your questions, please give us a call at 1-877-586-6654.
Question: Can any rackmount monitor be used with this switch?
Answer: Thank you for your inquiry. As long as the Rackmount monitor meets the requirements of the switch, it should work - ie. USB & VGA.
