Minicom Digital Signage CAT5 Audio and VGA Extender

0VS22037A

$445.00

Please note, the 0VS22037 is no longer available and there is no direct replacement provided by the manufacturer. For upgrade options, please contact your KVM Switches Online sales representative at 1-877-586-6654.

The ComQi DS 0VS22037 is the ultimate out-of-band solution for the last step in a digital signage setup, the AV Extender is the quickest, most efficient way to move multimedia content from player to display.
A one-to-one, player-to-plasma/LCD system for transmission of high quality audio and video, the AV Extender transmits rich multimedia from any type of player/computer to any type of electronic display device over standard shielded CAT5 cable.

The AV Extender provides the flexibility you need for a customized digital signage installation, allowing you to set up your display device up to 110m/360ft from its player/computer. The display is mounted strategically in public view, while the hardware needed to run the multimedia content is kept behind closed doors and out of public reach.
Delivery of rich, dynamic content via an out-of-band system like the AV Extender is the most reliable way to ensure real time display without burdening the network.

ComQi DS 0VS22037 is also one of the more cost effective ways to get a digital signage system up and running in your place of business. Plasmas with built in CPU, which are needed for network content delivery, cost three times as much as regular plasma screens; using a dedicated, out-of-band system like the AV Extender can lower the cost of a display significantly.

*The ComQi 0VS22037 does not require shielded CAT5 cable, however it is recommended.

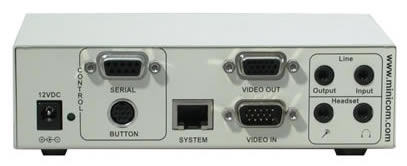

ComQi AV Extender Backside
ComQi AV Extender Backside

0VS22037 Features and Benefits:

  • Real time transfer of multimedia content for the last step of digital signage displays
  • Distribution to any type of display device over flexible CAT5 cable
  • High resolution (1200x1600@75Hz) support
  • Extend displays up to 110m/360ft from the player/computer
  • Out-of-band - frees network from heavy image transfer
  • No player or computer needed at display end
  • Optional 2 button control accessory via serial port
  • 3 year warranty

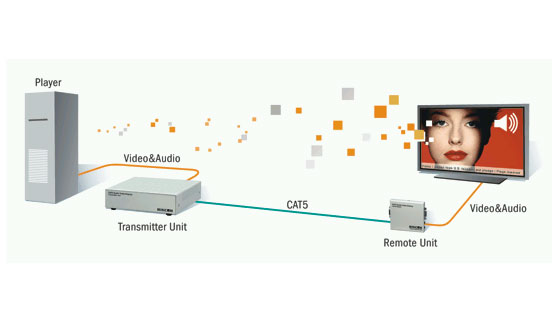

ComQi AV Extender Diagram
ComQi AV Extender Diagram

ComQi 0VS22037 Technical Specification:

Mechanical Transmitter Power Remote
Height 1.6 in. (42 mm.) 2.8 in. (73 mm.)
Width 5.9 in. (150 mm.) 1.3 in. (34 mm.)
Depth 3.7 in. (96 mm.) 3.3 in. (85 mm.)
Power Supply External Adaptor 12VDC 2A External Adaptor 5 VDC
Cables & Connectors
VGA In HDD15M N/A
VGA Out HDD15F N/A
CPU VGA N/A HDD15M
Screen N/A HDD15F
System Out RJ45 N/A
System In N/A RJ45
Mic/Headphone/Sc In/Out Jack N/A
Audio In/Out N/A Jack
Control DB9 N/A
Controller MiniDin8F N/A
Environmental
Operating Temperature  5° C to 40° C/41° F to 104° F
Storage Temperature -40° C to 70° C/-104° F to 158° F
Sync
Horizontal/Vertical Sync Polarity Positive/Negative
Sync  TTL compatible
Resolution Up to 1600x1200 @ 75Hz (depending on the cable length)
Input/Output  Analog signal red, green, blue 0.7v p-p 75 Ohm
System Cable CAT5 Shielded FTP Cable 2 x 2 x 24 AWG
Maximum Distance 110m/360ft
Audio Mono
