The Minicom Digital Signage manufactured by Kramer Electronics DSV3K-TU is a video tuning unit for the DS Vision 3000 digital signage solution.
The DS Vision 3000 broadcasts high-definition video and stereo-audio from a single player, over CATx cable, to multiple plasma/LCD screens located up to 600m/2000ft away. Combined with full serial command, the DS Vision 3000 is the ultimate solution for controlling and delivering real-time multimedia content. This digital signage solution is a modular system, made up of units that can be exactly molded to your network requirements without superfluous hardware. The result is a digital signage network streamlined in function and cost-effective on budget.
The Minicom DS Vision system features full RS-232 bidirectional communication, which gives you the ability to remotely query screen operation time - essential for monitoring the remaining life of your screens and a valuable precursor to measuring advertising effectiveness. The DS system also enables power commands that turn either the entire screen network or screen groups on/off. Screen wear and tear is thus minimized while maximizing the life of your digital signage network. With extended range, DS Vision 3000 gives you the freedom to set-up your LCD/plasma screens at any desired location, without fear of compromising your media quality and safe in the knowledge that your media player is out of sight and out of unauthorized hands. Whether multiple-screen timetables and advertisements, or single-screen bulletins, signs and training aids, the DS Vision 3000 system delivers your message, picture perfect, every time.
The DS Vision 3000 consists of the following components (each sold separately):
- Broadcaster 8/16 port
- Line Splitter 8 port
- Remote (110m/360ft)
- Remote Long (600m/2000ft)
- Video Tuning Unit

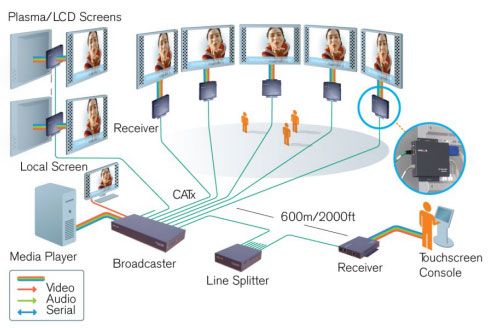

Minicom DS Vision 3000 CAT 5 Range Extender System Application Diagram
Minicom DS Vision 3000 System Features:
- Max. Resolution - 1080p.
- Single CAT 5 Cable.
- System Range - 600m (2000ft).
- Bidirectional RS-232 Control - Enables remote screen control (query & power).
- Service Utility - For easy setup and maintenance.
- Palm-Held Video Tuning Unit.
- DDC Support.
- Out-of-Band Operation.
- VESA Screen Mounts.
- Open Protocol - For CMS integration.
Minicom DS DSV3K-TU Tuner Unit Specifications:
|Dimensions||3.7 x 2.4 x 1 in.|
|Power||Powered from the receiver|
Minicom DS Vision 3000 (DSV3K) System Specifications:
|Operating Temperature||5°C to 40°C / 41°F to 104°F|
|Storage Temperature||-40°C to 70°C / -104°F to 158°F|
|Resolution||Up to 1920x1440 @ 60Hz (depending on the cable length)|
|Input/Output Video Signals||Analog signal red, green, blue 0.7v p-p 75 Ohm|
|System Cable||CATx UTP/ FTP cable 2x4x24 AWG Solid Wire|
|Skew Compensation||Up to 63 n sec|
|DDC||Complies with VESA DDC-2 specification|
|RS-232 Connection||Full serial = RXD, TXD, DTR, DSR, RTS, CTS|
|Serial baud rate||57,000|
|Frequency Response||20Hz to 20kHz, +/−1dB.|
|Signal to Noise Ratio||80dBA|
|Crosstalk (all hostile)||-70dB|
|Input Impedance||10k Ohm|
|Line Level Output||Supports multimedia speakers.|
The Minicom DS DSV3K-TU was formerly known as the 0VS50008, 0VS50008A, OVS50008, or OVS50008A
