Avocent SwitchView SC 8-Port Secure KVM Switch



Recommended replacement: Avocent SwitchView SC380
Alternative options: Contact Us

Custom designed Avocent'switchView SC (10080SC-AM) increases the levels of secure KVM switching and provides controlled access for up to eight computers. The Avocent Avocent SwitchView SC design makes it impossible to transfer data between the connected computers --- an important factor for a user who may access secure and non-secure networks from one point of contact. With Avocent's LongView extension technology, critical computers and other related assets can be located in secure (locked) areas allowing for controlled access with the SwitchView SC. The versatile Avocent'switchView SC 8-port model provides secure access at desktop or from the rack. The space saving desktop model also doubles as monitor stand.

Avocent'switchView SC

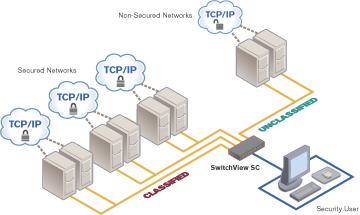

Avocent'switchView SC Function Diagram

Avocent'switchView SC Features and Benefits:

  • Complies with NSA certification requirements to EAL 4
  • Access. Specifically designed for safer access to secure networks
  • Controlled KVM Switching. Separate I/O processors for controlled KVM switching and access to CPUs connected to secure and unsecured networks
  • Custom Designed Firmware. Custom designed encrypted internal firmware
  • Standard PS/2 Protocol. Standard PS/2 protocol is maintained to avoid the possibility of any external device detecting the presence of the SwitchView SC
  • Clears Buffer. Automatically clears the keyboard buffer immediately after data is transmitted through the switch, so no data is ever left in the switch
  • Multi-Server Support. Securely access up to eight attached servers using just one keyboard, monitor, and mouse Reliable Technology. A proven, secure KVM switching solution for controlling access

Avocent'switchView 10080-SC Specifications:

Height 1.7 in. (4.5 cm)
Width 17.2 in. (43.7 cm)
Depth 8.5 in. (21.6 cm)
Weight 6.3 lbs. (2.9 kg)
Operating Temperature 41F (5C) to 104F (40C)
Storage Temperature -4F (-20C) to 122F (50C)
Operating Voltage 100 - 230 VAC
Power Frequency 50 - 60 Hz
Input 8.0 W
Supported Hardware
Computers IBM PC/AT, PS/2 and 100% compatible computers
Monitor VGA, SVGA, (XGA, XGA-II with adapters), maximum resolution 1280x1024 @ 60Hz
Peripherals PS/2 keyboard, PS/2 mouse, Microsoft IntelliMouse (PS/2 only)
Approved Agency

Ul, cUL, FCC, IC and CE
EAL 4: Peripheral Sharing Switch (PSS) for Human Interface Devices
