Avocent SwitchView 8-Port KVM Switch w/OSD



Recommended replacement: Avocent SwitchView USB KVM Switch
Alternative options: Contact Us

Control up to eight servers using one set of peripherals with the Avocent SwitchView 10085 OSD KVM switch.  The 8-port Avocent'switchView 10085 OSD switch, with on-screen display and multi-level security, is designed for small businesses that need simplified multi-server control. You can assign names to your servers to simplify installation and server identification.

Avocent'switchView 10085 OSD KVM switch

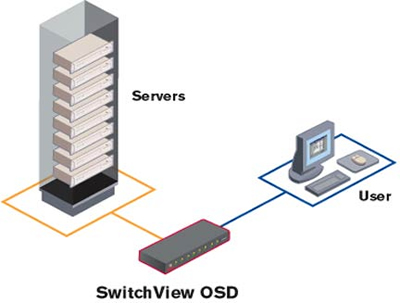

Avocent'switchView 10085 OSD KVM switch Function Diagram

Avocent'switchView 10085 Features and Benefits:

  • SwitchView KVM switches offer affordable switching solutions for today's home offices and small offices.
  • SwitchView KVM switches are easy to install. Some models let you share speakers and a microphone between PCs.
  • A USB hub and/or support for DVI high video resolution are available on other SwitchView switches.
  • Compact, space-saving KVM switches eliminate desktop clutter and provide efficient PC access.PC access: You can access up to 8 PS/2 servers from a single keyboard, monitor and mouse. Control servers using a hotkey sequence or through a pop-up menu system.
  • Server naming: Give your servers names that are meaningful to you - no more complicated server addresses and locations to memorize.
  • On-screen menus: Secondary menus let you configure and initiate channel scanning and other system features.
  • Multi-level security: Configure and control server access for every type of user in your system

Avocent'switchView 10085 Specifications:

Height 1.7 in. (4.5 cm)
Width 17.2 in. (43.7 cm)
Depth 6.5 in. (16.51 cm)
Weight 4.2 lbs. (1.91 kg)
Operating Temperature 41F (5C) to 104F (40C)
Storage Temperature -4F (-20C) to 122F (50C)
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz (internal power)
Supported Hardware
Computers IBM PC/AT, PS/2 and 100% compatible computers
Monitor VGA, SVGA, XGA, XVGA-II with adaptor
Peripherals PS/2 keyboard, PS/2 mouse, Microsoft IntelliMouse (PS/2 only)
Approved Agency UL 1950, CSA C22.2 No. 950, EN60950
FCC part 15A, EN55022, EN50082
Question: Can we have the default password?
Answer: Thank you for your inquiry. This switch has secure and non-secure modes. The non-secure mode, which does not require a password, is the default. The secure mode requires an admin password be created and then entered to access the switch. So, unfortunately, there is no "default" password.

If the switch requires a password to access the OSD, and that password has been forgotten, you will need to contact Avocent Technical Support. Avocent safeguards the security of it's customers by not publishing password resets or override information. All password resets are done via a call to the Avocent technical support department after customer verification. Local Avocent support phone numbers can be found here: http://www.emersonnetworkpower.com/en-US/Services/InfrastructureManagement/CustomerSupport/Pages/CustomerSupportContacts.aspx.
